SKU: SNP20EC-RHP

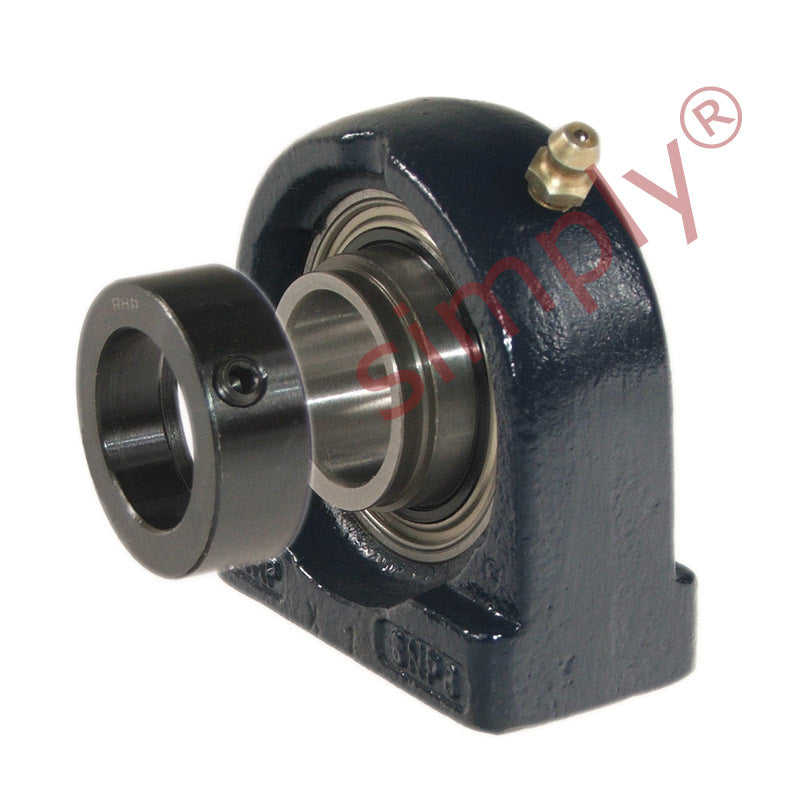

RHP SNP20EC Threaded Base Small Footprint Pillow / Plummer Block and 20mm Bore Flat Back Collar Insert
RHP SNP20EC Threaded Base Small Footprint Pillow / Plummer Block and 20mm Bore Flat Back Collar Insert
Regular price
CHF 45.41
ex VAT
Regular price
Sale price
CHF 45.41
ex VAT
In stock
Price Break
10+
CHF 40.41
19+
CHF 38.14
29+
CHF 37.69
39+
CHF 37.24
49+
CHF 36.78
74+
CHF 36.33
99+
CHF 34.06
199+
CHF 33.60
249+
CHF 33.15
499+
CHF 32.70
999+
CHF 31.79
Couldn't load pickup availability
Description
Description
|
RHP SNP EC Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- SNP
- Bolt Hole Centres:
- 50.8mm
Technical
Technical
| Bore | 20mm |
|---|---|
| L | 65mm |
| H | 33.3mm |
| H1 | 13.5mm |
| H2 | 65.8mm |
| J | 50.8mm |
| Threads | M8x1.25 |
| A | 32mm |
| A1 | 22.5mm |
| B2 | 30.92mm |
| s1 | 7.56mm |
| d2 | 33.3mm |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1220-20ECG+insonly">1220-20ECG Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
