SKU: SNP2R-RHP

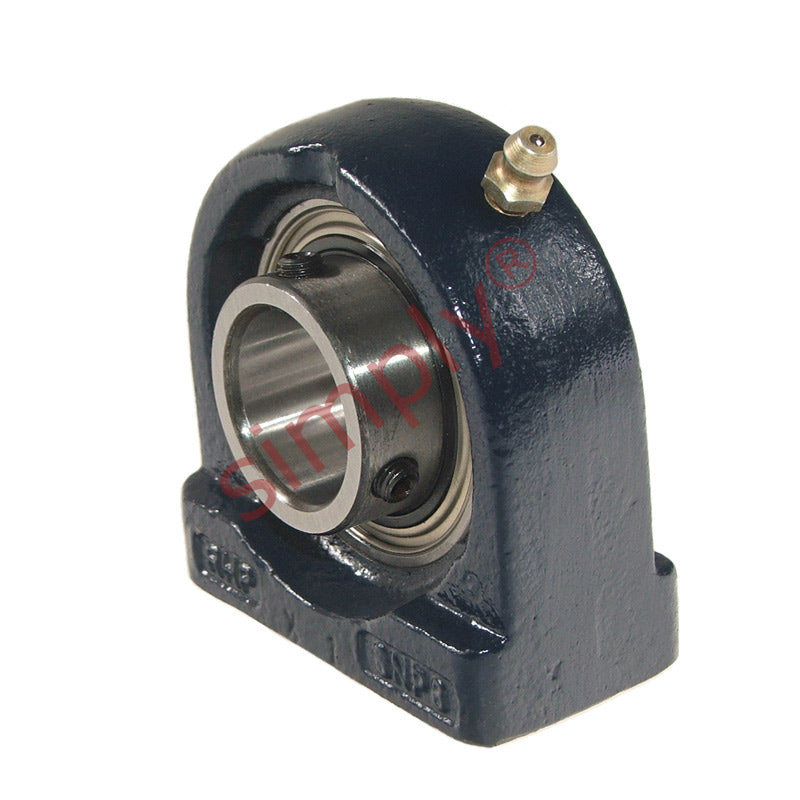

RHP SNP2R Threaded Base Small Footprint Pillow / Plummer Block and 2 inch Bore Grub Screw Full Width Insert
RHP SNP2R Threaded Base Small Footprint Pillow / Plummer Block and 2 inch Bore Grub Screw Full Width Insert
Regular price
CHF 106.09
ex VAT
Regular price
Sale price
CHF 106.09
ex VAT
In stock
Price Break
10+
CHF 94.42
19+
CHF 89.12
29+
CHF 88.05
39+
CHF 86.99
49+
CHF 85.93
74+
CHF 84.87
99+
CHF 79.57
199+
CHF 78.51
249+
CHF 77.45
499+
CHF 76.38
999+
CHF 74.26
Couldn't load pickup availability
Description
Description
|
RHP SNP Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- SNP
- Bolt Hole Centres:
- 101.6mm = 4 inch
Technical
Technical
| Bore | 2 inch |
|---|---|
| L | 5.315 inch |
| H | 2.252 inch |
| H1 | 0.925 inch |
| H2 | 4.528 inch |
| J | 4 inch |
| Threads | 5/8-11 UNC |
| A | 2.126 inch |
| A1 | 1.339 inch |
| B | 2.031 inch |
| s | 0.752 inch |
| d1 | 2.449 inch |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 3.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-2G+insonly">1050-2G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
