SKU: SNP30-RHP

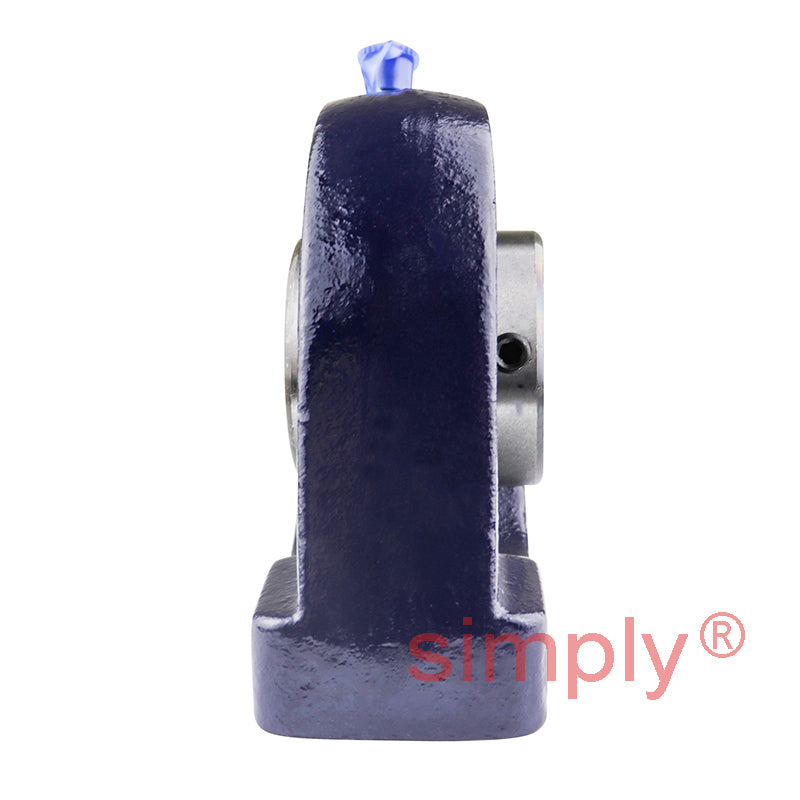

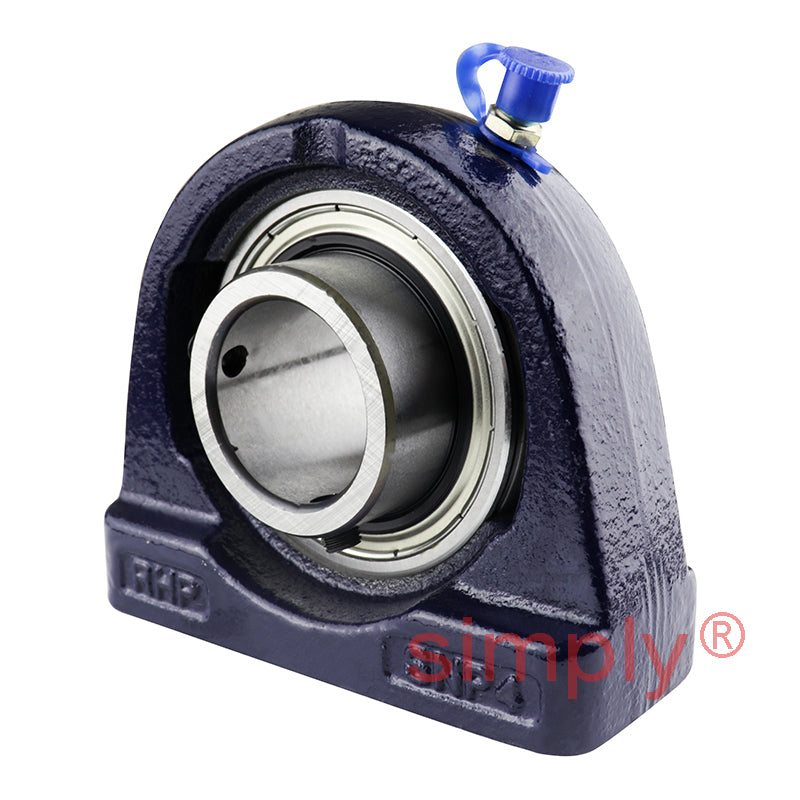

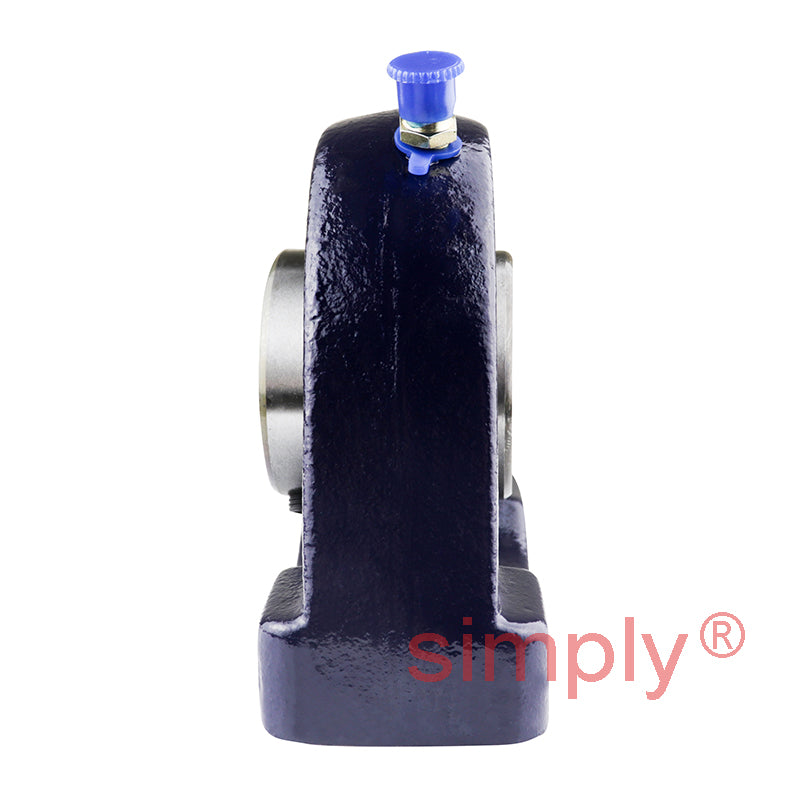

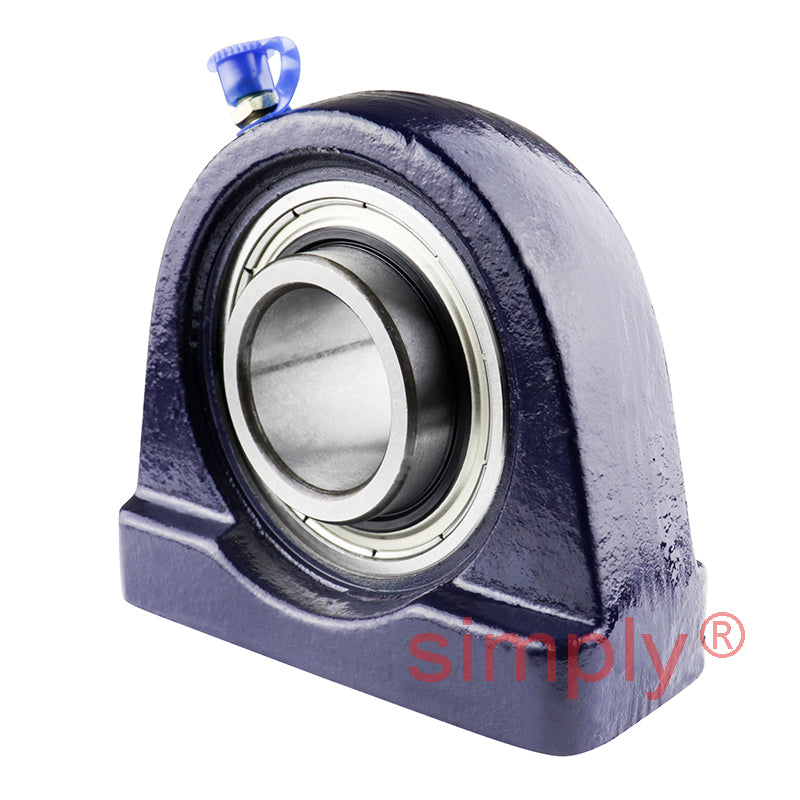

RHP SNP30 Threaded Base Small Footprint Pillow / Plummer Block and 30mm Bore Grub Screw Full Width Insert
RHP SNP30 Threaded Base Small Footprint Pillow / Plummer Block and 30mm Bore Grub Screw Full Width Insert
Regular price
CHF 60.05
ex VAT
Regular price
Sale price
CHF 60.05
ex VAT
In stock
Price Break
10+
CHF 53.44
19+
CHF 50.44
29+
CHF 49.84
39+
CHF 49.24
49+
CHF 48.64
74+
CHF 48.04
99+
CHF 45.04
199+
CHF 44.44
249+
CHF 43.84
499+
CHF 43.24
999+
CHF 42.04
Couldn't load pickup availability
Description
Description
|
RHP SNP Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Style:
- SNP
- Bolt Hole Centres:
- 76.2mm
Technical
Technical
| Bore | 30mm |
|---|---|
| L | 96mm |
| H | 42.9mm |
| H1 | 16.5mm |
| H2 | 83.9mm |
| J | 76.2mm |
| Threads | M10x1.50 |
| A | 40mm |
| A1 | 28mm |
| B | 38.1mm |
| s | 15.93mm |
| d1 | 40mm |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-30G+insonly">1030-30G Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
