SKU: SNP30EC-RHP

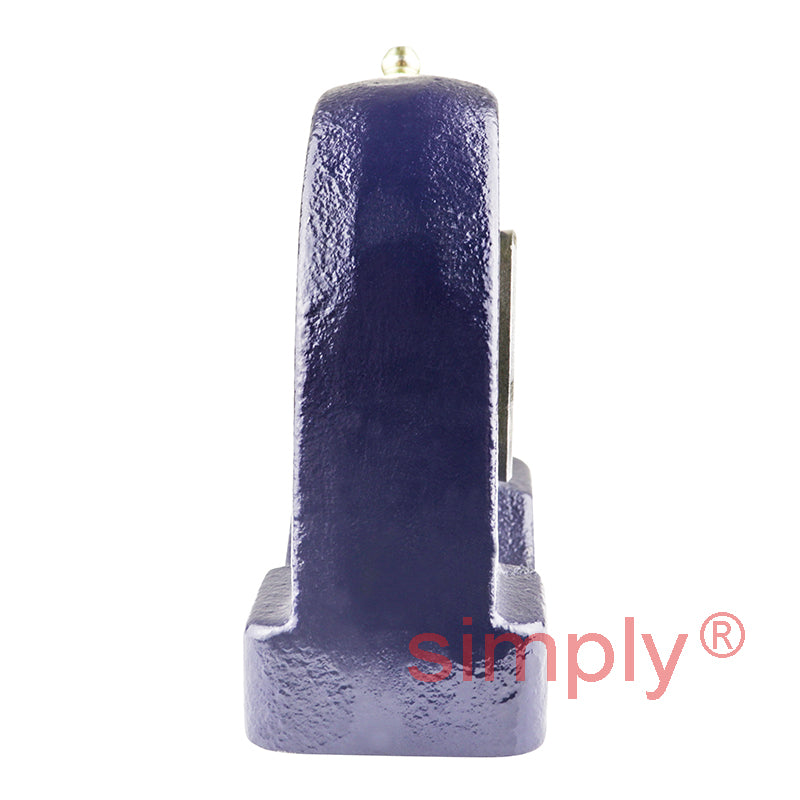

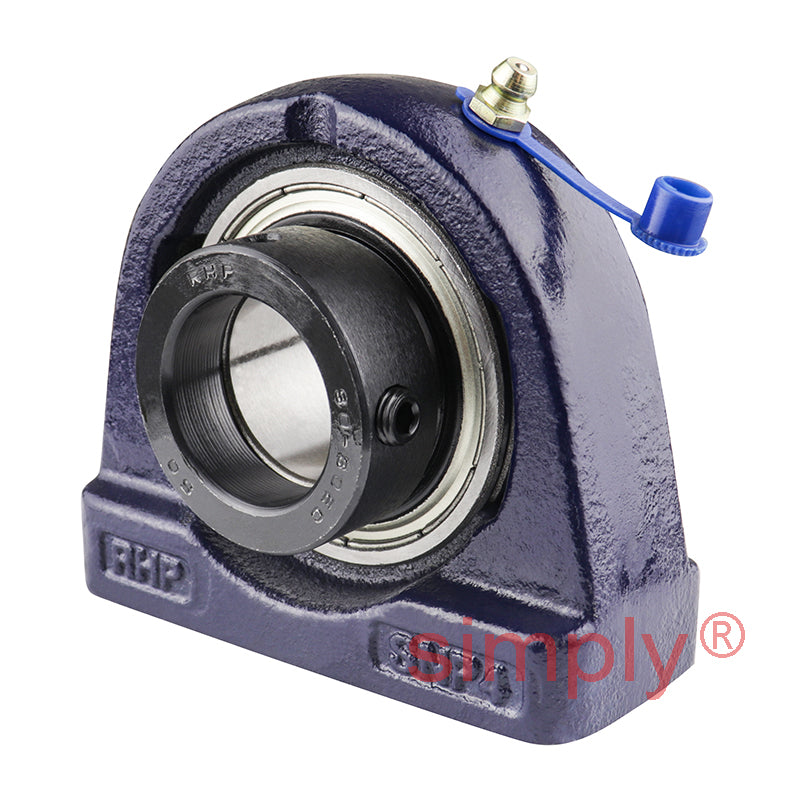

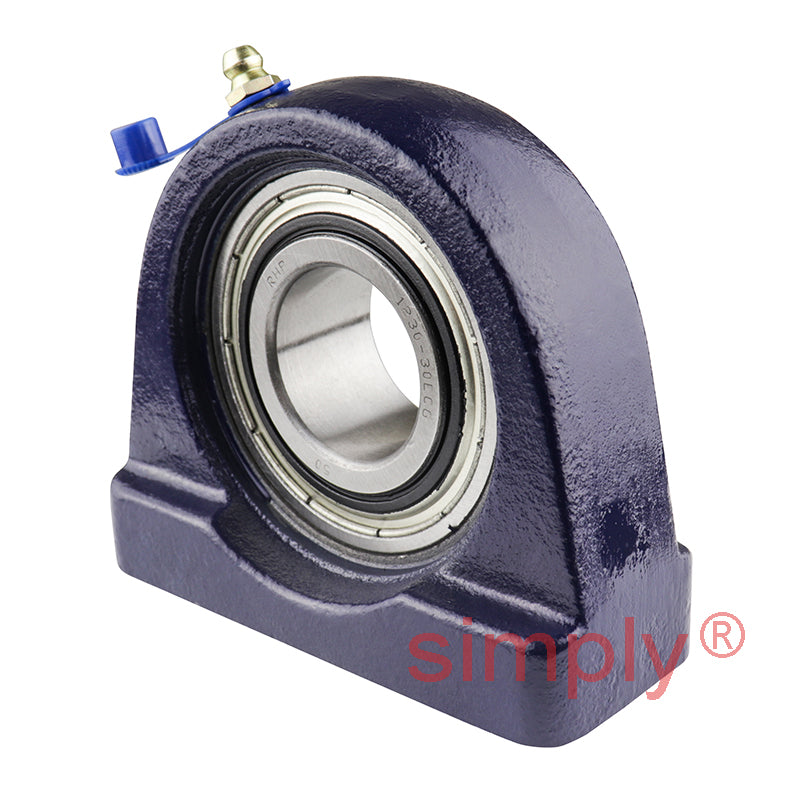

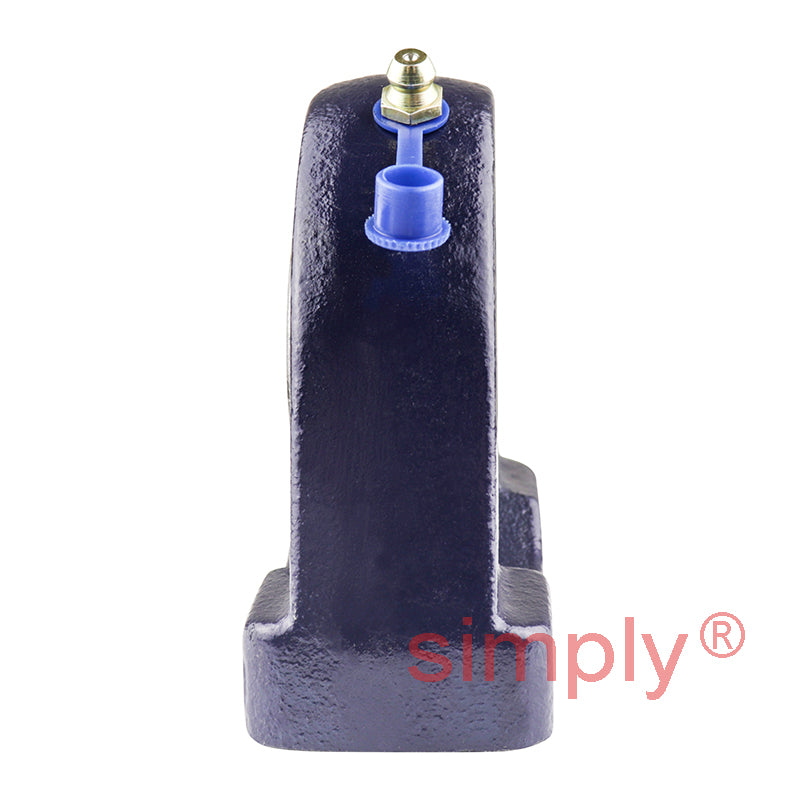

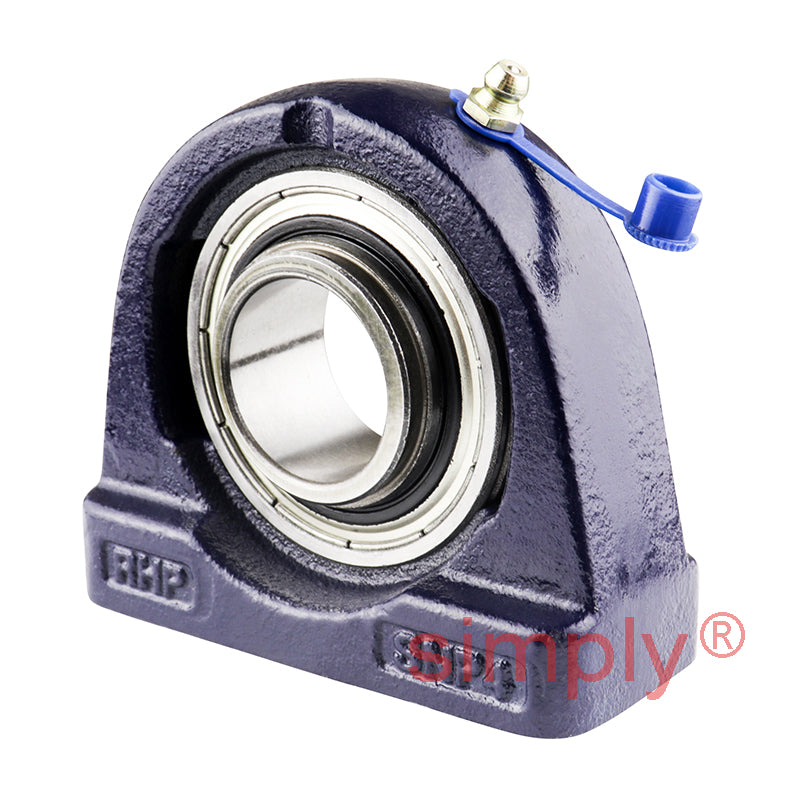

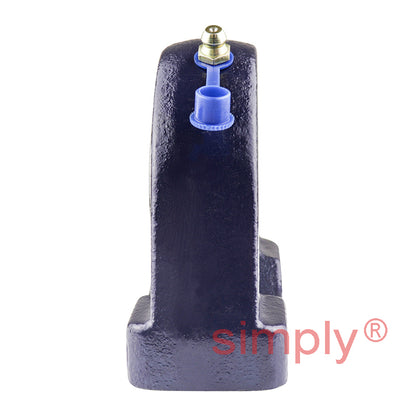

RHP SNP30EC Threaded Base Small Footprint Pillow / Plummer Block and 30mm Bore Flat Back Collar Insert

RHP SNP30EC Threaded Base Small Footprint Pillow / Plummer Block and 30mm Bore Flat Back Collar Insert
CHF 62.21 ex VAT
CHF 62.21 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 55.37
19+ CHF 52.26
29+ CHF 51.63
39+ CHF 51.01
49+ CHF 50.39
74+ CHF 49.77
99+ CHF 46.66
199+ CHF 46.04
249+ CHF 45.41
499+ CHF 44.79
999+ CHF 43.55
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

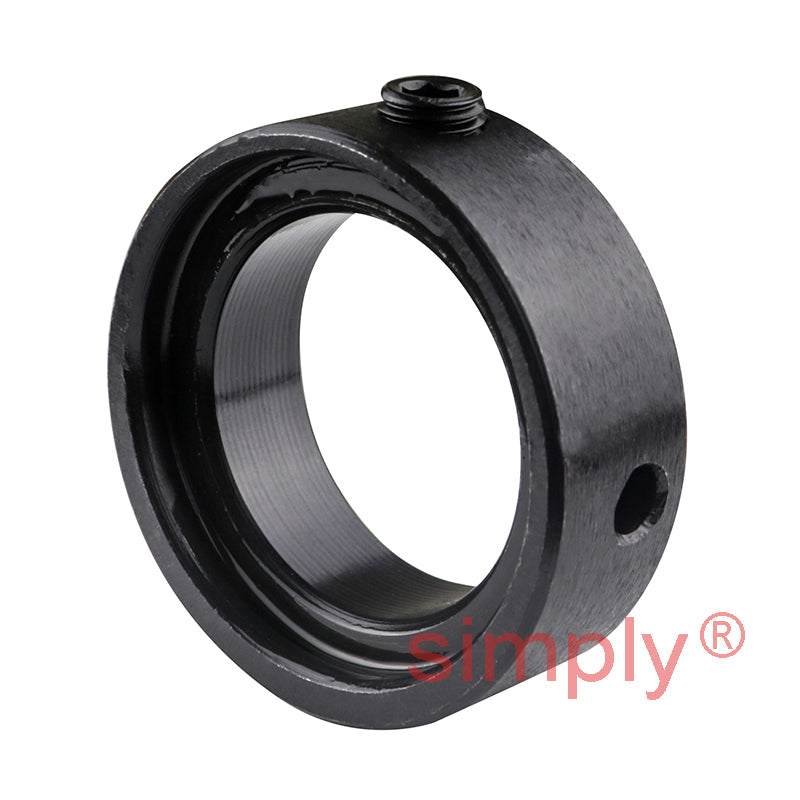

RHP SNP EC Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, small footprint, flat back bearing insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Style:
SNP
Bolt Hole Centres:
76.2mm
Technical
Bore 30mm
L 96mm
H 42.9mm
H1 16.5mm
H2 83.9mm
J 76.2mm
Threads M10x1.50
A 40mm
A1 28mm
B2 35.68mm
s1 9.04mm
d2 44.45mm
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.8 kg
Insert <a href="advanced_search_result.php?keywords=1230-30ECG+insonly">1230-30ECG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
