SKU: SNP35-RHP

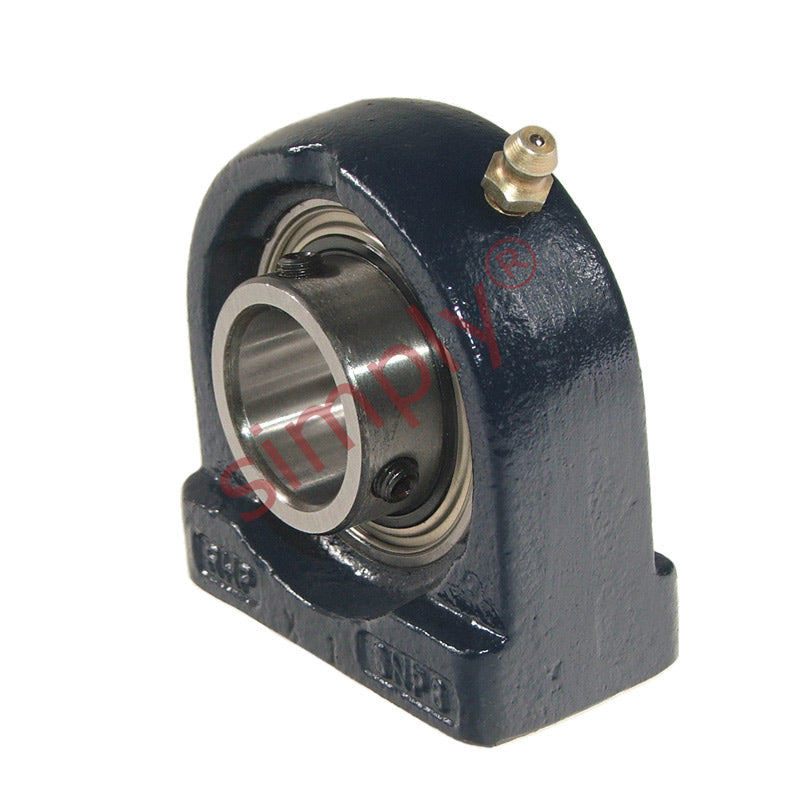

RHP SNP35 Threaded Base Small Footprint Pillow / Plummer Block and 35mm Bore Grub Screw Full Width Insert
RHP SNP35 Threaded Base Small Footprint Pillow / Plummer Block and 35mm Bore Grub Screw Full Width Insert
Regular price
CHF 68.98
ex VAT
Regular price
Sale price
CHF 68.98
ex VAT
In stock
Price Break
10+
CHF 61.39
19+
CHF 57.94
29+
CHF 57.25
39+
CHF 56.56
49+
CHF 55.87
74+
CHF 55.18
99+
CHF 51.74
199+
CHF 51.05
249+
CHF 50.36
499+
CHF 49.67
999+
CHF 48.29
Couldn't load pickup availability
Description
Description
|
RHP SNP Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- SNP
- Bolt Hole Centres:
- 82.6mm
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 110mm |
| H | 47.6mm |
| H1 | 19.5mm |
| H2 | 95.6mm |
| J | 82.6mm |
| Threads | M10x1.50 |
| A | 45mm |
| A1 | 30mm |
| B | 42.88mm |
| s | 17.53mm |
| d1 | 46.69mm |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 2.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-35G+insonly">1035-35G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
