SKU: SNP45DEC-RHP

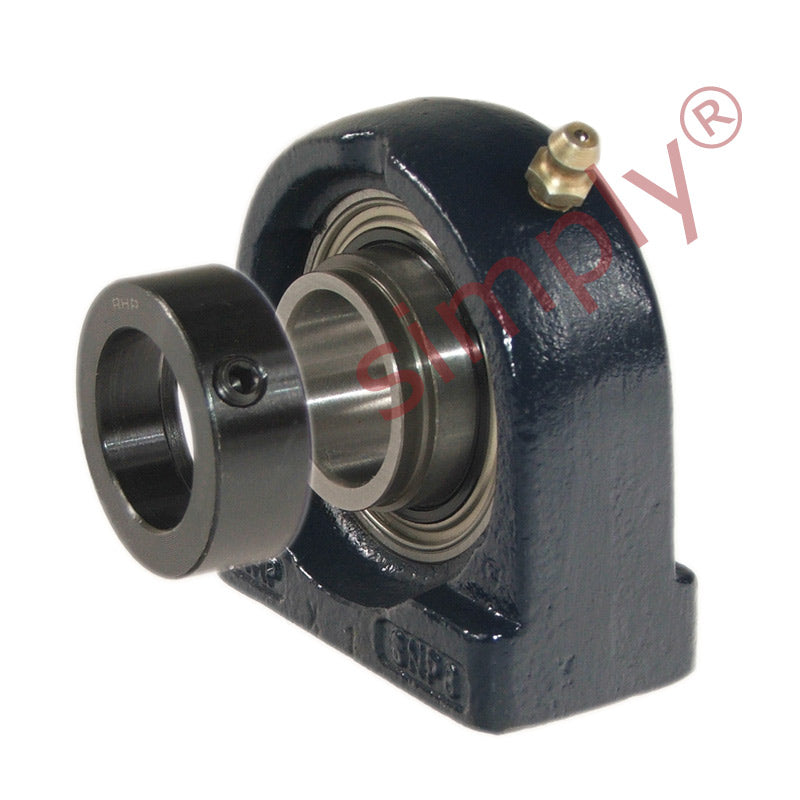

RHP SNP45DEC Threaded Base Small Footprint Pillow / Plummer Block and 45mm Bore Full Width Collar Insert
RHP SNP45DEC Threaded Base Small Footprint Pillow / Plummer Block and 45mm Bore Full Width Collar Insert
Regular price
CHF 109.65
ex VAT
Regular price
Sale price
CHF 109.65
ex VAT
In stock
Price Break
10+
CHF 97.59
19+
CHF 92.11
29+
CHF 91.01
39+
CHF 89.91
49+
CHF 88.82
74+
CHF 87.72
99+
CHF 82.24
199+
CHF 81.14
249+
CHF 80.04
499+
CHF 78.95
999+
CHF 76.76
Couldn't load pickup availability
Description
Description
|
RHP SNP DEC Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- SNP
- Bolt Hole Centres:
- 95.3mm
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 127mm |
| H | 54mm |
| H1 | 19.5mm |
| H2 | 110mm |
| J | 95.3mm |
| Threads | M12X1.75 |
| A | 48mm |
| A1 | 33mm |
| B3 | 56.34mm |
| s2 | 21.46mm |
| d2 | 63.5mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 3.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-45DECG+insonly">1045-45DECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
