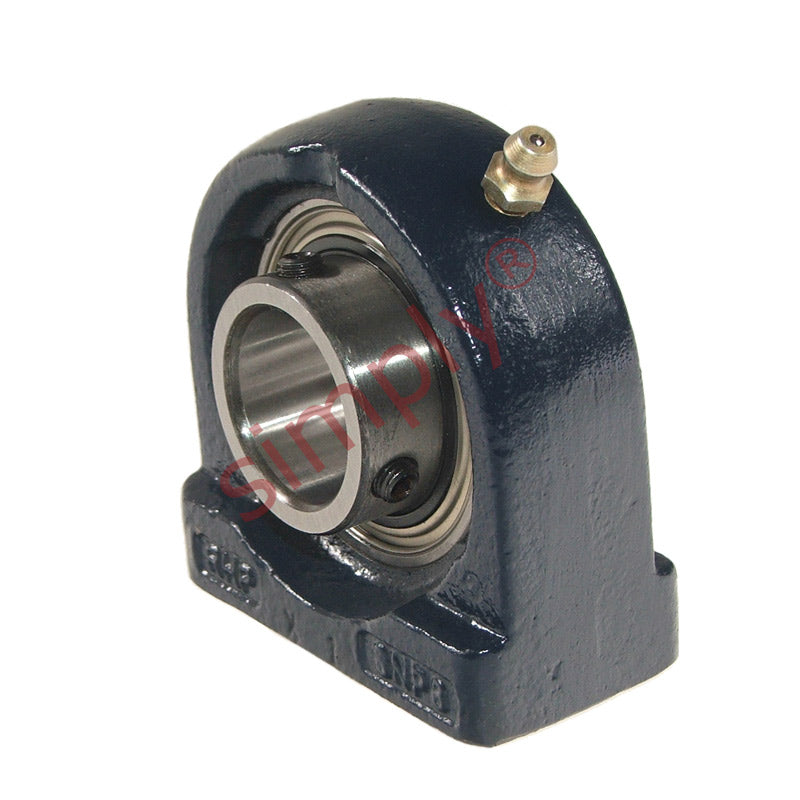

RHP SNP50 Threaded Base Small Footprint Pillow / Plummer Block and 50mm Bore Grub Screw Full Width Insert
RHP SNP50 Threaded Base Small Footprint Pillow / Plummer Block and 50mm Bore Grub Screw Full Width Insert
Regular price
CHF 100.04
ex VAT
Regular price
Sale price
CHF 100.04
ex VAT
In stock
Price Break
10+
CHF 89.04
19+
CHF 84.03
29+
CHF 83.03
39+
CHF 82.03
49+
CHF 81.03
74+
CHF 80.03
99+
CHF 75.03
199+
CHF 74.03
249+
CHF 73.03
499+
CHF 72.03
999+
CHF 70.03
Couldn't load pickup availability
Description
Description
|
RHP SNP Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- SNP
- Bolt Hole Centres:
- 101.6mm
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 135mm |
| H | 57.2mm |
| H1 | 23.5mm |
| H2 | 115mm |
| J | 101.6mm |
| Threads | M16x2.0 |
| A | 54mm |
| A1 | 34mm |
| B | 51.59mm |
| s | 19.1mm |
| d1 | 62.2mm |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 3.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-50G+insonly">1050-50G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
