SKU: SNP50DEC-RHP

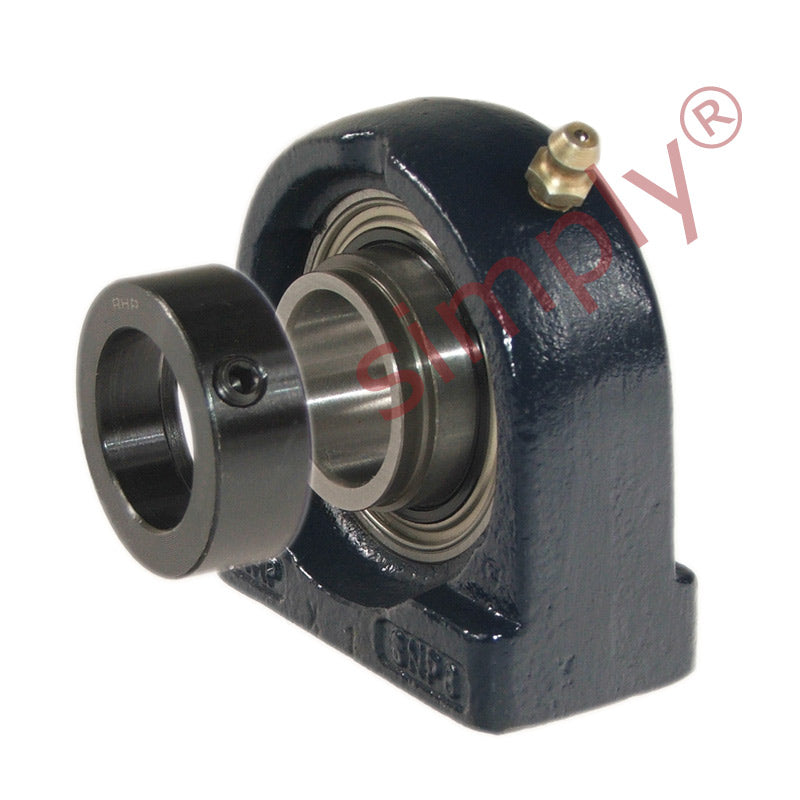

RHP SNP50DEC Threaded Base Small Footprint Pillow / Plummer Block and 50mm Bore Full Width Collar Insert
RHP SNP50DEC Threaded Base Small Footprint Pillow / Plummer Block and 50mm Bore Full Width Collar Insert
Regular price
CHF 118.86
ex VAT
Regular price
Sale price
CHF 118.86
ex VAT
In stock
Price Break
10+
CHF 105.79
19+
CHF 99.84
29+
CHF 98.65
39+
CHF 97.47
49+
CHF 96.28
74+
CHF 95.09
99+
CHF 89.15
199+
CHF 87.96
249+
CHF 86.77
499+
CHF 85.58
999+
CHF 83.20
Couldn't load pickup availability
Description
Description
|
RHP SNP DEC Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- SNP
- Bolt Hole Centres:
- 101.6mm
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 135mm |
| H | 57.2mm |
| H1 | 23.5mm |
| H2 | 115mm |
| J | 101.6mm |
| Threads | M16x2.0 |
| A | 54mm |
| A1 | 34mm |
| B3 | 62.7mm |
| s2 | 24.65mm |
| d2 | 69.85mm |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 3.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-50DECG+insonly">1050-50DECG Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
