SKU: SNP55DEC-RHP

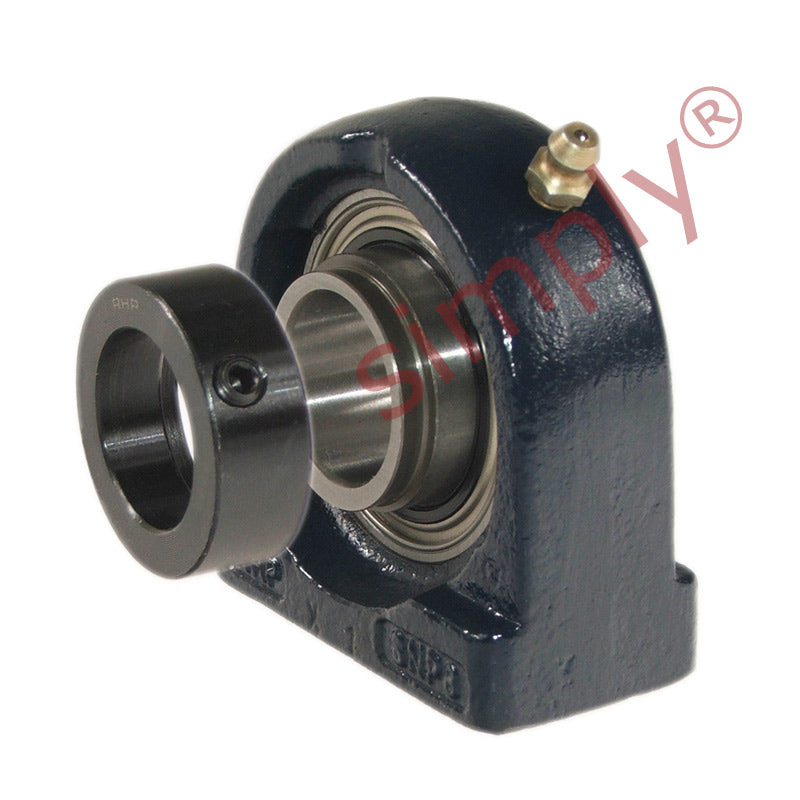

RHP SNP55DEC Threaded Base Small Footprint Pillow / Plummer Block and 55mm Bore Full Width Collar Insert
RHP SNP55DEC Threaded Base Small Footprint Pillow / Plummer Block and 55mm Bore Full Width Collar Insert
Regular price
CHF 152.52
ex VAT
Regular price
Sale price
CHF 152.52
ex VAT
In stock
Price Break
10+
CHF 135.74
19+
CHF 128.12
29+
CHF 126.59
39+
CHF 125.07
49+
CHF 123.54
74+
CHF 122.02
99+
CHF 114.39
199+
CHF 112.86
249+
CHF 111.34
499+
CHF 109.81
999+
CHF 106.76
Couldn't load pickup availability
Description
Description
|
RHP SNP DEC Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55mm
- Style:
- SNP
- Bolt Hole Centres:
- 118mm
Technical
Technical
| Bore | 55mm |
|---|---|
| L | 154mm |
| H | 63.5mm |
| H1 | 26.5mm |
| H2 | 130mm |
| J | 118mm |
| Threads | M16x2.00 |
| A | 60mm |
| A1 | 41.5mm |
| B3 | 71.44mm |
| s2 | 27.82mm |
| d2 | 76.2mm |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-55DECG+insonly">1055-55DECG Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
