SKU: SNP60DEC-RHP

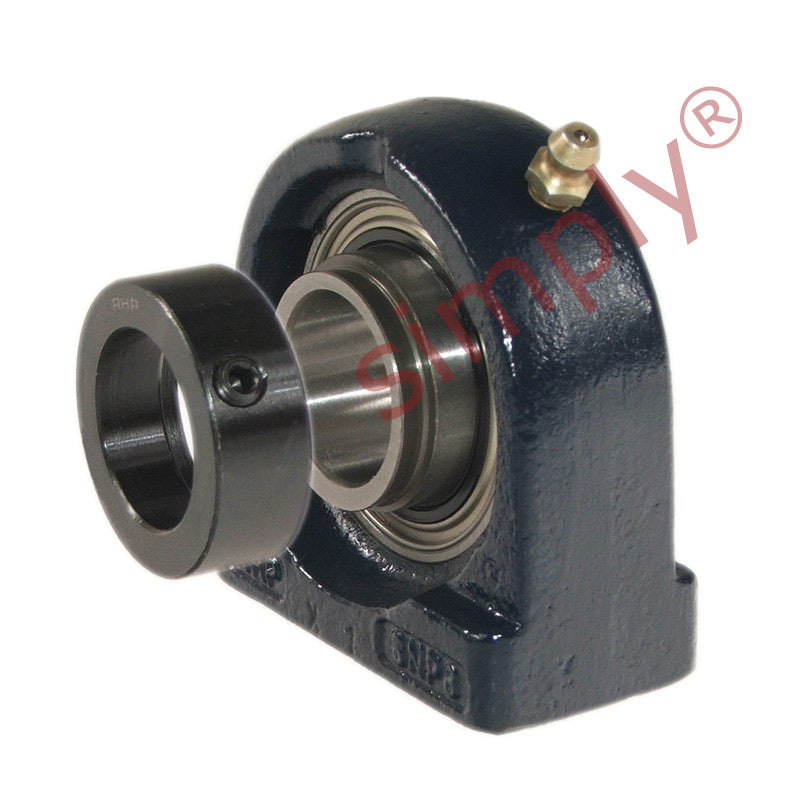

RHP SNP60DEC Threaded Base Small Footprint Pillow / Plummer Block and 60mm Bore Full Width Collar Insert
RHP SNP60DEC Threaded Base Small Footprint Pillow / Plummer Block and 60mm Bore Full Width Collar Insert
Regular price
CHF 189.49
ex VAT
Regular price
Sale price
CHF 189.49
ex VAT
In stock
Price Break
10+
CHF 168.65
19+
CHF 159.17
29+
CHF 157.28
39+
CHF 155.38
49+
CHF 153.49
74+
CHF 151.59
99+
CHF 142.12
199+
CHF 140.22
249+
CHF 138.33
499+
CHF 136.43
999+
CHF 132.64
Couldn't load pickup availability
Description
Description
|
RHP SNP DEC Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60mm
- Style:
- SNP
- Bolt Hole Centres:
- 118mm
Technical
Technical
| Bore | 60mm |
|---|---|
| L | 154mm |
| H | 69.9mm |
| H1 | 26.5mm |
| H2 | 141.5mm |
| J | 118mm |
| Threads | M16x2.00 |
| A | 60mm |
| A1 | 41.5mm |
| B3 | 77.82mm |
| s2 | 31.02mm |
| d2 | 84.12mm |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-60DECG+insonly">1060-60DECG Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
