SKU: SONL226-526-SKF

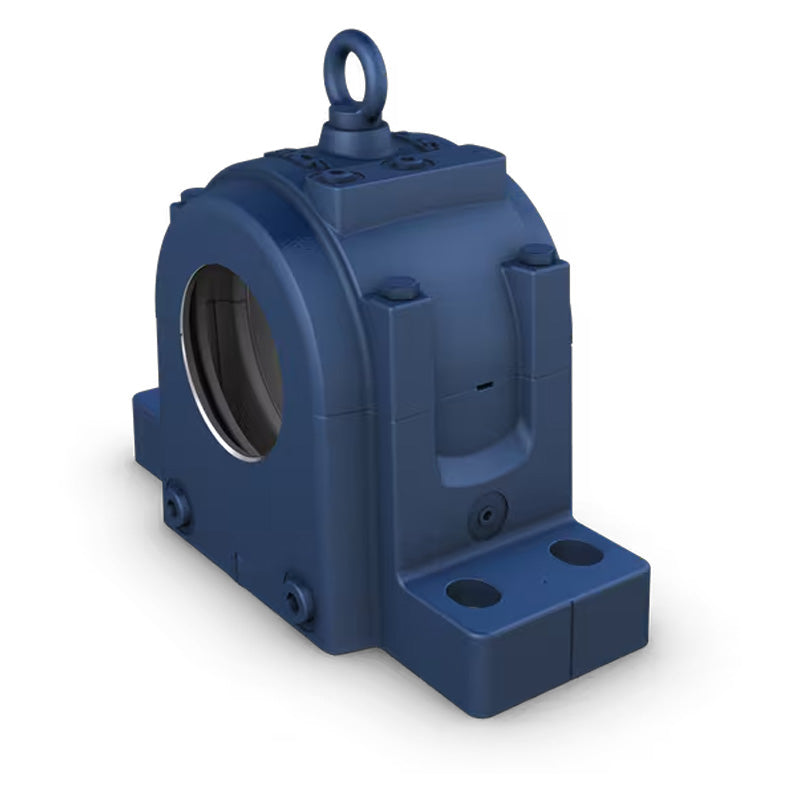

SKF SONL226-526 Cast Iron Split Pillow Block Housing
SKF SONL226-526 Cast Iron Split Pillow Block Housing
Regular price
CHF 3,098.00
ex VAT
Regular price
Sale price
CHF 3,098.00
ex VAT
In stock
Price Break
4+
CHF 2,468.75
9+
CHF 2,330.05
19+
CHF 2,302.32
29+
CHF 2,274.58
39+
CHF 2,246.84
49+
CHF 2,219.10
59+
CHF 2,080.41
69+
CHF 2,052.67
79+
CHF 2,024.93
89+
CHF 1,997.19
99+
CHF 1,941.71
Description
Description
|
SKF SONL Split Plummer Block Housings: SONL plummer block housings are split housings consisting of a cap and base. They are made of grey cast iron and are painted block using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). The housings have a deep reservoir that holds a large volume of oil so that heat can be dissipated effectively. The housings have four holes cast into the base for attachment bolts. Benefits: Strong, stiff and simple design, simple mounting, deep sump for lower operating temperatures. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 377mm
Technical
Technical
| da | 112.712mm |
|---|---|
| Ca | 86mm |
| Da | 230mm |
| A | 255mm |
| A1 | 180mm |
| A2 | 184mm |
| AA | 263mm |
| AB | 270mm |
| d1 | 145mm |
| B1 | 103mm |
| H | 335mm |
| H0 | 406mm |
| H1 | 180mm |
| H2 | 60mm |
| J | 377mm |
| J1 | 100mm |
| L | 450mm |
| N | 35mm |
| N1 | 28mm |
| S | 135mm |
| PG | G 3/8 |
| P1 | 60mm |
| P2 | 69mm |
| RG | G 3/4 |
| R1 | 192mm |
| R2 | 25mm |
| O1 | 120mm |
| O2 | 184mm |
| J6 | 390mm |
| N4 max | 8mm |
| ba | 60mm |
| bb | 195mm |
| s2 | 43mm |
| Weight | 87 kg |
