SKU: SONL230-530-SKF

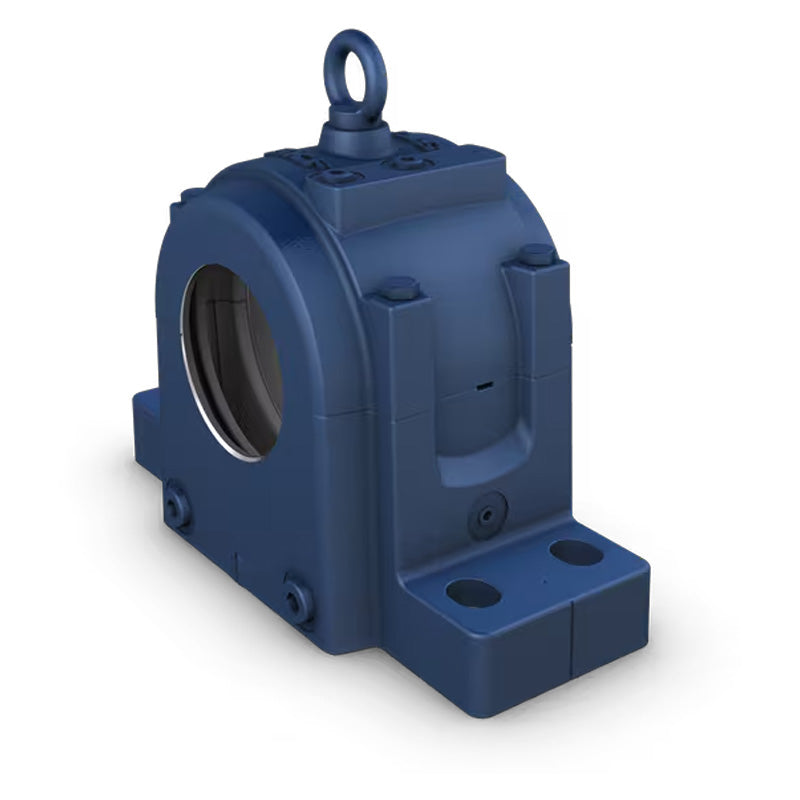

SKF SONL230-530 Cast Iron Split Pillow Block Housing
SKF SONL230-530 Cast Iron Split Pillow Block Housing
Regular price
CHF 3,226.00
ex VAT
Regular price
Sale price
CHF 3,226.00
ex VAT
In stock
Price Break
4+
CHF 2,568.11
9+
CHF 2,423.83
19+
CHF 2,394.98
29+
CHF 2,366.12
39+
CHF 2,337.26
49+
CHF 2,308.41
59+
CHF 2,164.13
69+
CHF 2,135.28
79+
CHF 2,106.42
89+
CHF 2,077.57
99+
CHF 2,019.86
Description
Description
|
SKF SONL Split Plummer Block Housings: SONL plummer block housings are split housings consisting of a cap and base. They are made of grey cast iron and are painted block using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). The housings have a deep reservoir that holds a large volume of oil so that heat can be dissipated effectively. The housings have four holes cast into the base for attachment bolts. Benefits: Strong, stiff and simple design, simple mounting, deep sump for lower operating temperatures. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 450mm
Technical
Technical
| da | 131.762mm |
|---|---|
| Ca | 93mm |
| Da | 270mm |
| A | 260mm |
| A1 | 190mm |
| A2 | 187mm |
| AA | 270mm |
| AB | 280mm |
| d1 | 170mm |
| B1 | 103.5mm |
| H | 375mm |
| H0 | 446mm |
| H1 | 200mm |
| H2 | 65mm |
| J | 450mm |
| J1 | 115mm |
| L | 540mm |
| N | 42mm |
| N1 | 35mm |
| S | 140mm |
| PG | G 3/8 |
| P1 | 65mm |
| P2 | 73mm |
| RG | G 3/4 |
| R1 | 220mm |
| R2 | 26mm |
| O1 | 121mm |
| O2 | 187mm |
| J6 | 460mm |
| N4 max | 12mm |
| ba | 68mm |
| bb | 207.5mm |
| s2 | 37.5mm |
| Weight | 115 kg |
