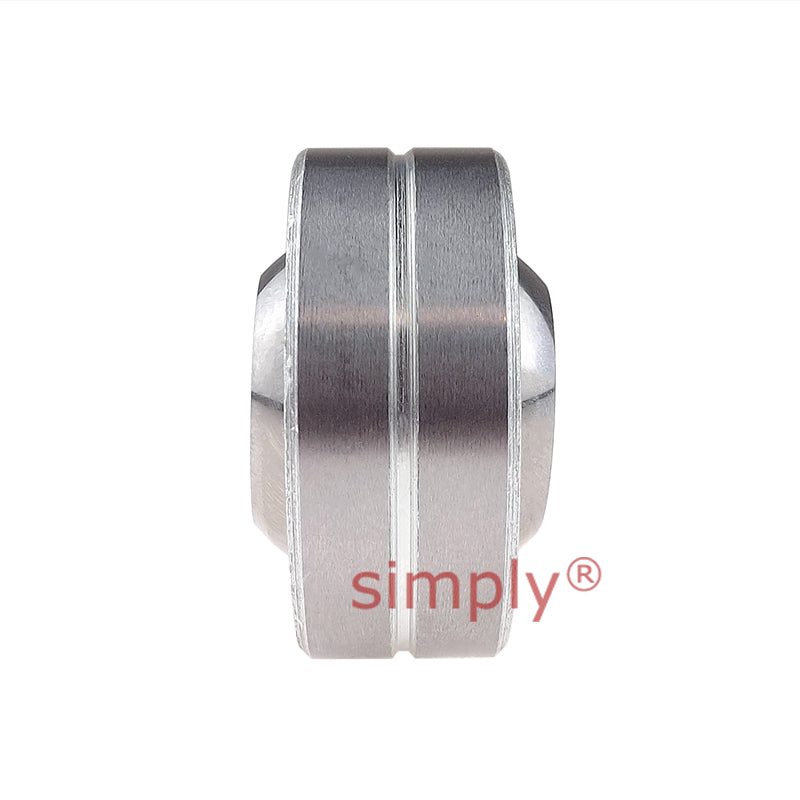

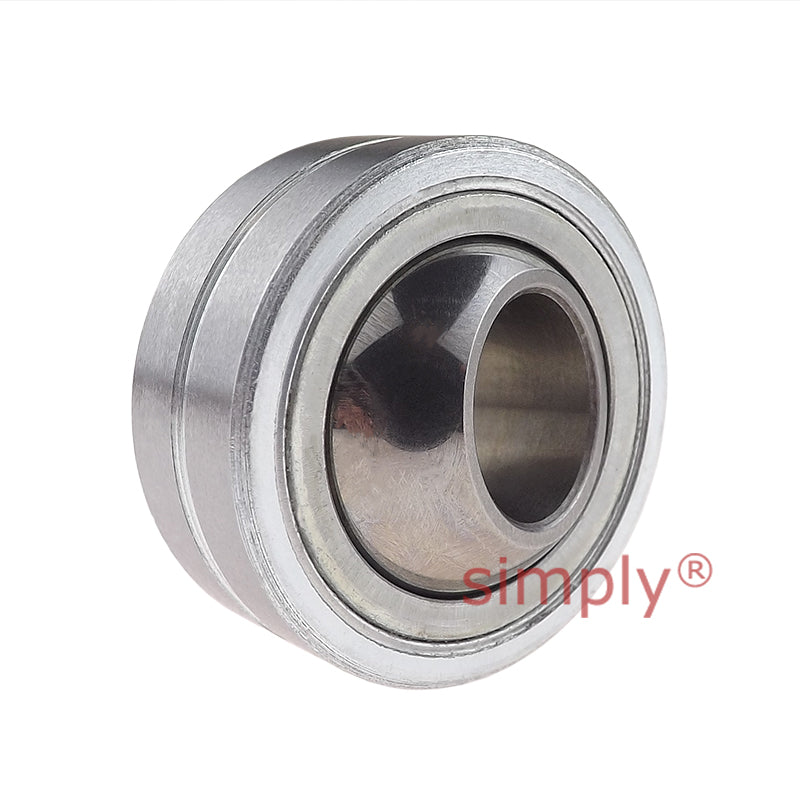

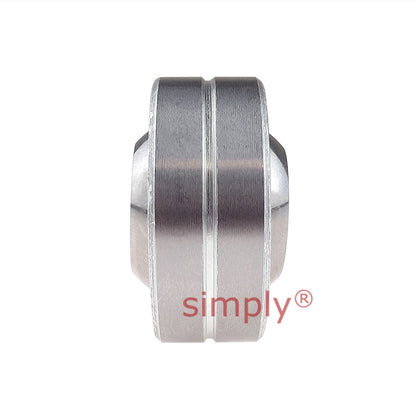

SPH-M12 Maintenance Free Spherical Plain Bearing 12x30x16x12mm

SPH Series Maintenance Free Spherical Plain: The SPH series of spherical plain bearings follow the sizing convention of some of the lined types but retain their maintenance free capabilities.

The outer ring is made from 230M07pb Steel and generally, Zinc plated with a clear Trivalent passivate, the race is coated with Grilamid L20LF, the balls are made from 230M07pb steel with Nitrotec surface protection. They are supplied lubricated with a thin film of Uniflor oil.

Possible Applications: Light to medium industrial/mechanical, Construction equipment, Agricultural equipment, Recreational vehicles, High precision motion control.

Benefits:Rohs compliant, maintenance free, Nitrotec surface protection, ELV (Automotive End of Life) compliant, 100 percent recyclable. Temperature Range: -40deg C to +80deg C

Brand / Quality:

Major Brand - High Quality

Inside Diameter:

12mm

Outside Diameter:

30mm

Width:

16mm
