SKU: SRB25/1.5-16_16/24-TRAN

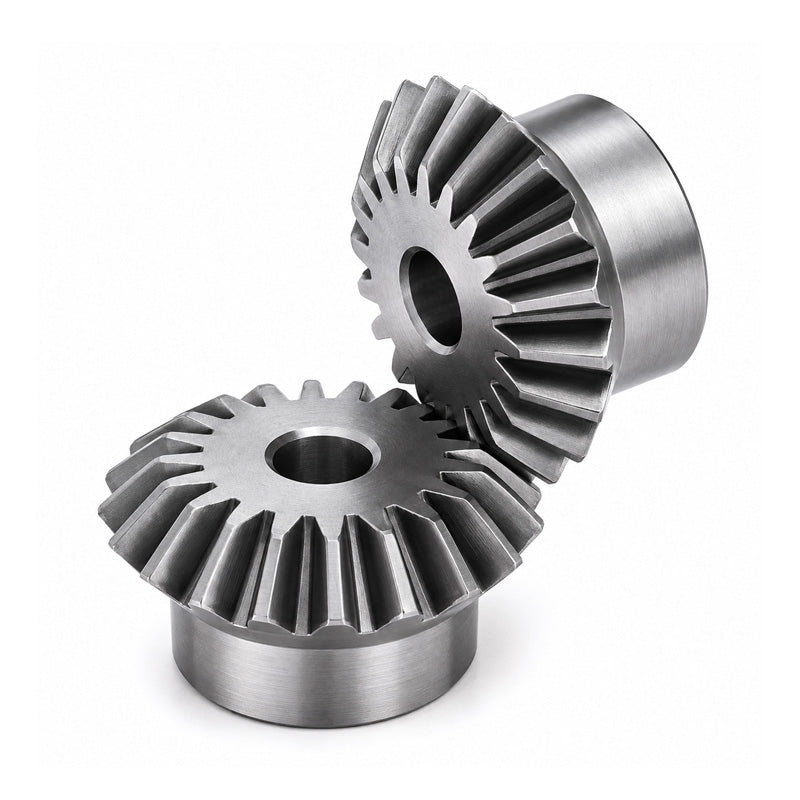

SRB25/1.5-16 16/24 Tooth Metric En8 Steel Bevel Gear Set 1.5:1 Ratio 2.5 MOD 20deg Pressure Angle
SRB25/1.5-16 16/24 Tooth Metric En8 Steel Bevel Gear Set 1.5:1 Ratio 2.5 MOD 20deg Pressure Angle
Regular price
CHF 117.13
ex VAT
Regular price
Sale price
CHF 117.13
ex VAT
Equivalent to: SRB25/1.5-16
In stock
Price Break
10+
CHF 104.25
19+
CHF 98.39
29+
CHF 97.22
39+
CHF 96.05
49+
CHF 94.88
74+
CHF 93.70
99+
CHF 87.85
199+
CHF 86.68
249+
CHF 85.50
499+
CHF 84.33
999+
CHF 81.99
Couldn't load pickup availability
Description
Description
Equivalent: SRB25/1.5-16
- Brand / Quality:
- Drive-Flex - High Quality
- Bore:
- G1: 12mm / G2: 16mm
- Number of Teeth:
- 16/24
- Pitch Circle Diameter:
- G1: 45.2mm / G2: 62.1mm
Technical
Technical
| Gear 1 - Pitch Module | 2.5 |
|---|---|
| Gear 1 - No. Teeth | 16 |
| Gear 1 - dp | 40mm |
| Gear 1 - A+V | 49mm |
| Gear 1 - dm | 32.3mm |
| Gear 1 - Bore | 12mm |
| Gear 1 - F | 13mm |
| Gear 1 - A | 30.8mm |
| Gear 1 - de | 45.2mm |
| Gear 1 - S | 0mm |
| Gear 1 - Lm | 16.4mm |
| Gear 2 - Pitch Module | 2.5 |
| Gear 2 - No. Teeth | 24 |
| Gear 2 - dp | 60mm |
| Gear 2 - A+V | 46mm |
| Gear 2 - dm | 45.3mm |
| Gear 2 - Bore | 16mm |
| Gear 2 - F | 13mm |
| Gear 2 - A | 34mm |
| Gear 2 - de | 62.1mm |
| Gear 2 - S | 3.2mm |
| Gear 2 - Lm | 20mm |
