SKU: SRB45/1.5-25_16/24-TRAN

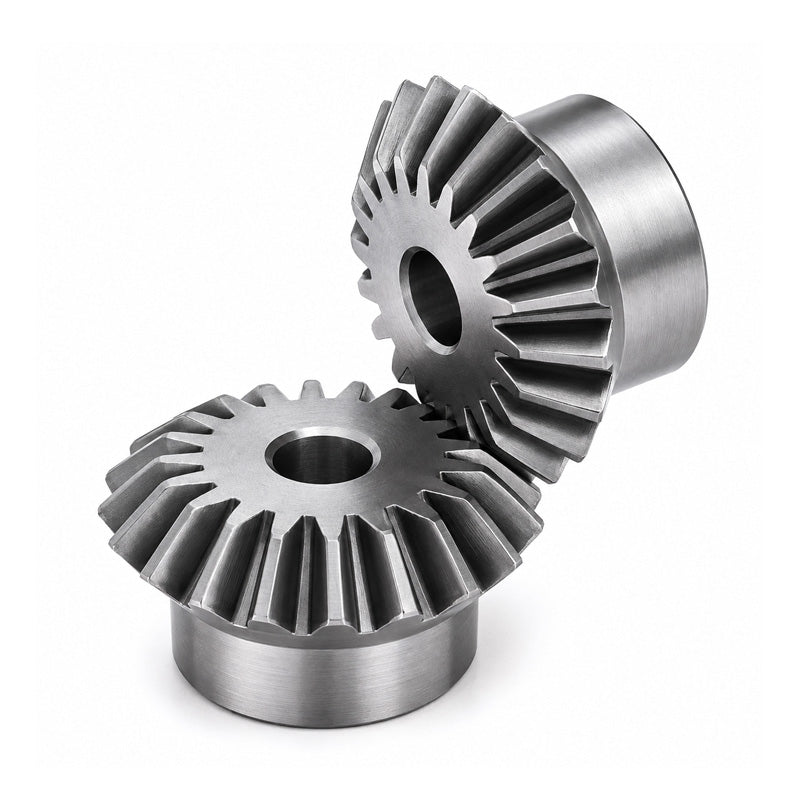

SRB45/1.5-25 16/24 Tooth Metric En8 Steel Bevel Gear Set 1.5:1 Ratio 4.5 MOD 20deg Pressure Angle
SRB45/1.5-25 16/24 Tooth Metric En8 Steel Bevel Gear Set 1.5:1 Ratio 4.5 MOD 20deg Pressure Angle
Regular price
CHF 239.52
ex VAT
Regular price
Sale price
CHF 239.52
ex VAT
Equivalent to: SRB45/1.5-25
In stock
Price Break
10+
CHF 213.17
19+
CHF 201.20
29+
CHF 198.80
39+
CHF 196.41
49+
CHF 194.01
74+
CHF 191.62
99+
CHF 179.64
199+
CHF 177.24
249+
CHF 174.85
499+
CHF 172.45
999+
CHF 167.66
Couldn't load pickup availability
Description
Description
Equivalent: SRB45/1.5-25
- Brand / Quality:
- Drive-Flex - High Quality
- Bore:
- G1: 20mm / G2: 25mm
- Number of Teeth:
- 16/24
- Pitch Circle Diameter:
- G1: 81.4mm / G2: 111.7mm
Technical
Technical
| Gear 1 - Pitch Module | 4.5 |
|---|---|
| Gear 1 - No. Teeth | 16 |
| Gear 1 - dp | 72mm |
| Gear 1 - A+V | 83mm |
| Gear 1 - dm | 60.3mm |
| Gear 1 - Bore | 20mm |
| Gear 1 - F | 20mm |
| Gear 1 - A | 47.6mm |
| Gear 1 - de | 81.4mm |
| Gear 1 - S | 0mm |
| Gear 1 - Lm | 25.1mm |
| Gear 2 - Pitch Module | 4.5 |
| Gear 2 - No. Teeth | 24 |
| Gear 2 - dp | 108mm |
| Gear 2 - A+V | 81mm |
| Gear 2 - dm | 80.3mm |
| Gear 2 - Bore | 25mm |
| Gear 2 - F | 20mm |
| Gear 2 - A | 57.8mm |
| Gear 2 - de | 111.7mm |
| Gear 2 - S | 6.5mm |
| Gear 2 - Lm | 35mm |
