SKU: SRB50/1.5-25_16/24-TRAN

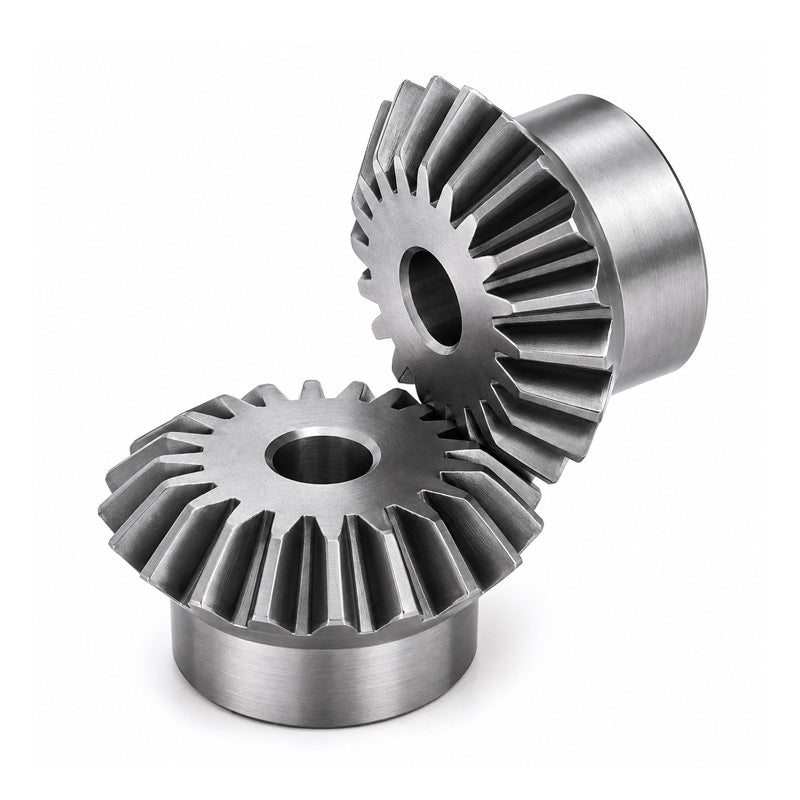

SRB50/1.5-25 16/24 Tooth Metric En8 Steel Bevel Gear Set 1.5:1 Ratio 5.0 MOD 20deg Pressure Angle
SRB50/1.5-25 16/24 Tooth Metric En8 Steel Bevel Gear Set 1.5:1 Ratio 5.0 MOD 20deg Pressure Angle
Regular price
CHF 272.19
ex VAT
Regular price
Sale price
CHF 272.19
ex VAT
Equivalent to: SRB50/1.5-25
In stock
Price Break
10+
CHF 242.25
19+
CHF 228.64
29+
CHF 225.92
39+
CHF 223.20
49+
CHF 220.47
74+
CHF 217.75
99+
CHF 204.14
199+
CHF 201.42
249+
CHF 198.70
499+
CHF 195.98
999+
CHF 190.53
Couldn't load pickup availability
Description
Description
Equivalent: SRB50/1.5-25
- Brand / Quality:
- Drive-Flex - High Quality
- Bore:
- G1: 25mm / G2: 30mm
- Number of Teeth:
- 16/24
- Pitch Circle Diameter:
- G1: 90.5mm / G2: 124.1mm
Technical
Technical
| Gear 1 - Pitch Module | 5.0 |
|---|---|
| Gear 1 - No. Teeth | 16 |
| Gear 1 - dp | 80mm |
| Gear 1 - A+V | 92mm |
| Gear 1 - dm | 60.3mm |
| Gear 1 - Bore | 25mm |
| Gear 1 - F | 24mm |
| Gear 1 - A | 54.1mm |
| Gear 1 - de | 90.5mm |
| Gear 1 - S | 0mm |
| Gear 1 - Lm | 25.4mm |
| Gear 2 - Pitch Module | 5.0 |
| Gear 2 - No. Teeth | 24 |
| Gear 2 - dp | 120mm |
| Gear 2 - A+V | 86mm |
| Gear 2 - dm | 80.3mm |
| Gear 2 - Bore | 30mm |
| Gear 2 - F | 24mm |
| Gear 2 - A | 61.1mm |
| Gear 2 - de | 124.1mm |
| Gear 2 - S | 6.6mm |
| Gear 2 - Lm | 35mm |
