SKU: SRB50/2_16/32-TRAN

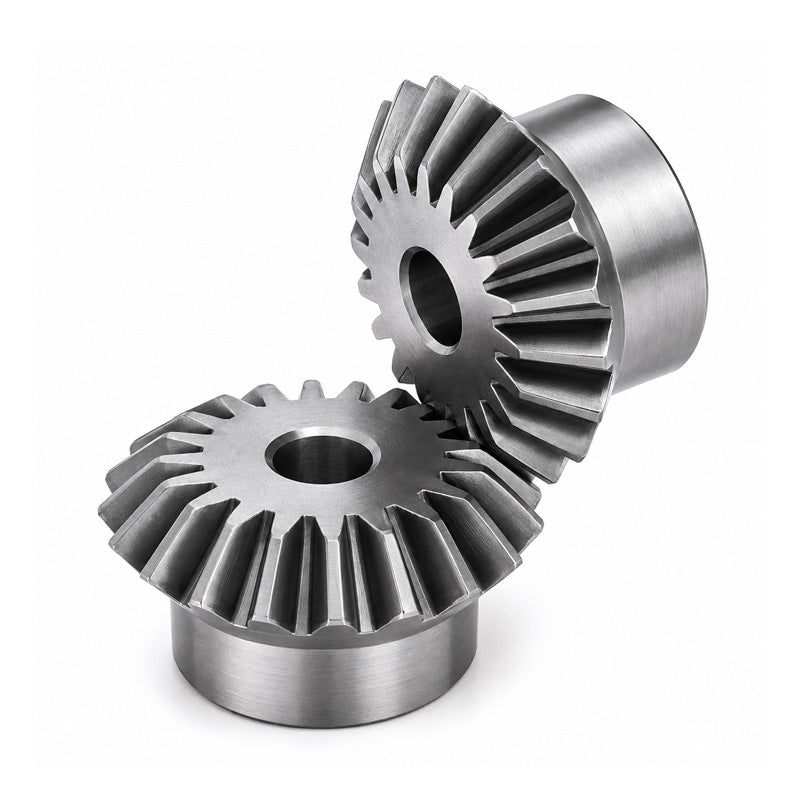

SRB50/2 16/32 Tooth Metric En8 Steel Bevel Gear Set 2:1 Ratio 5.0 MOD 20deg Pressure Angle
SRB50/2 16/32 Tooth Metric En8 Steel Bevel Gear Set 2:1 Ratio 5.0 MOD 20deg Pressure Angle
Regular price
CHF 250.42
ex VAT
Regular price
Sale price
CHF 250.42
ex VAT
Equivalent to: SRB50/2
In stock
Price Break
10+
CHF 222.87
19+
CHF 210.35
29+
CHF 207.85
39+
CHF 205.34
49+
CHF 202.84
74+
CHF 200.34
99+
CHF 187.82
199+
CHF 185.31
249+
CHF 182.81
499+
CHF 180.30
999+
CHF 175.29
Couldn't load pickup availability
Description
Description
Equivalent: SRB50/2
- Brand / Quality:
- Drive-Flex - High Quality
- Bore:
- G1: 16mm / G2: 20mm
- Number of Teeth:
- 16/32
- Pitch Circle Diameter:
- G1: 91mm / G2: 161mm
Technical
Technical
| Gear 1 - Pitch Module | 5.0 |
|---|---|
| Gear 1 - No. Teeth | 16 |
| Gear 1 - dp | 80mm |
| Gear 1 - A+V | 111mm |
| Gear 1 - dm | 56mm |
| Gear 1 - Bore | 16mm |
| Gear 1 - F | 30mm |
| Gear 1 - A | 59.91mm |
| Gear 1 - de | 91mm |
| Gear 1 - S | 5mm |
| Gear 1 - Lm | 25mm |
| Gear 2 - Pitch Module | 5.0 |
| Gear 2 - No. Teeth | 32 |
| Gear 2 - dp | 160mm |
| Gear 2 - A+V | 85mm |
| Gear 2 - dm | 100mm |
| Gear 2 - Bore | 20mm |
| Gear 2 - F | 30mm |
| Gear 2 - A | 60.2mm |
| Gear 2 - de | 161mm |
| Gear 2 - S | 8mm |
| Gear 2 - Lm | 30mm |
