SKU: SS.3205-2RS.EU

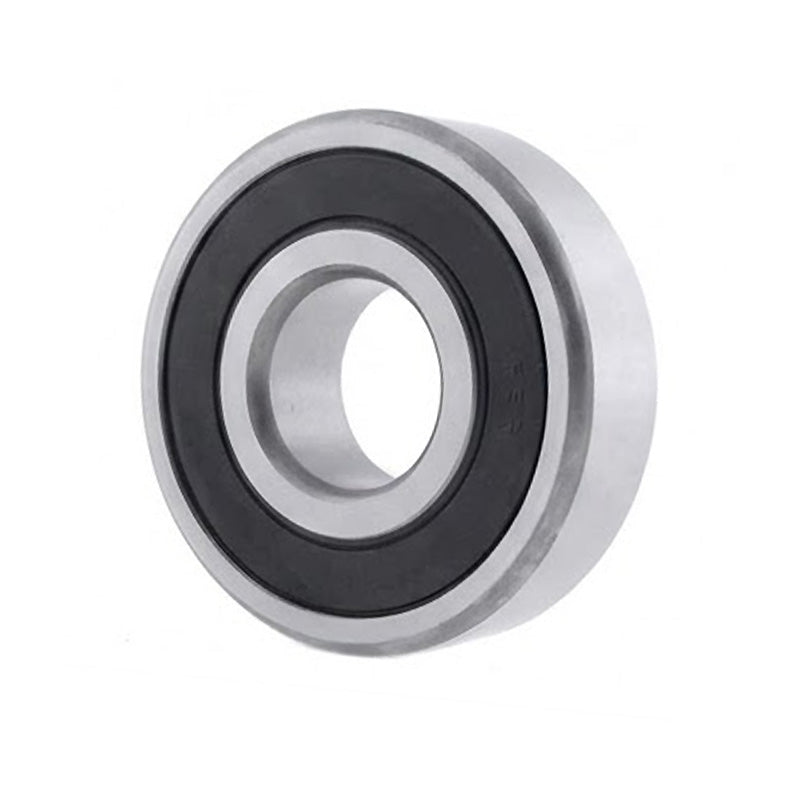

Budget SS32052RS Rubber Sealed Double Row Angular Contact Ball Bearing 25x52x20.6mm
Budget SS32052RS Rubber Sealed Double Row Angular Contact Ball Bearing 25x52x20.6mm
Regular price
CHF 18.00
ex VAT
Regular price
Sale price
CHF 18.00
ex VAT
Low stock
Price Break
10+
CHF 14.28
19+
CHF 13.48
29+
CHF 13.32
39+
CHF 13.16
49+
CHF 13.00
74+
CHF 12.84
99+
CHF 12.04
199+
CHF 11.88
249+
CHF 11.72
499+
CHF 11.56
999+
CHF 11.24
Share this product
Description
Description
Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 20.6mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 25 |
|---|---|
| D | 52 |
| B | 20.6 |
| Dynamic Load | 21.6Kn |
| Static Load | 14.3Kn |
| Pu | 0.6 |
| Reference Speed | - |
| Limiting Speed | 8500 |
| d1 | 32.7 |
| D1 | 45.9 |
| r1r2 min | 1 |
| a | 30 |
| da min | 30.6 |
| da max | 32.5 |
| Da max | 46.4 |
| ra max | 1 |
| Weight | 0.18kg |
