SKU: SS.D1400-018

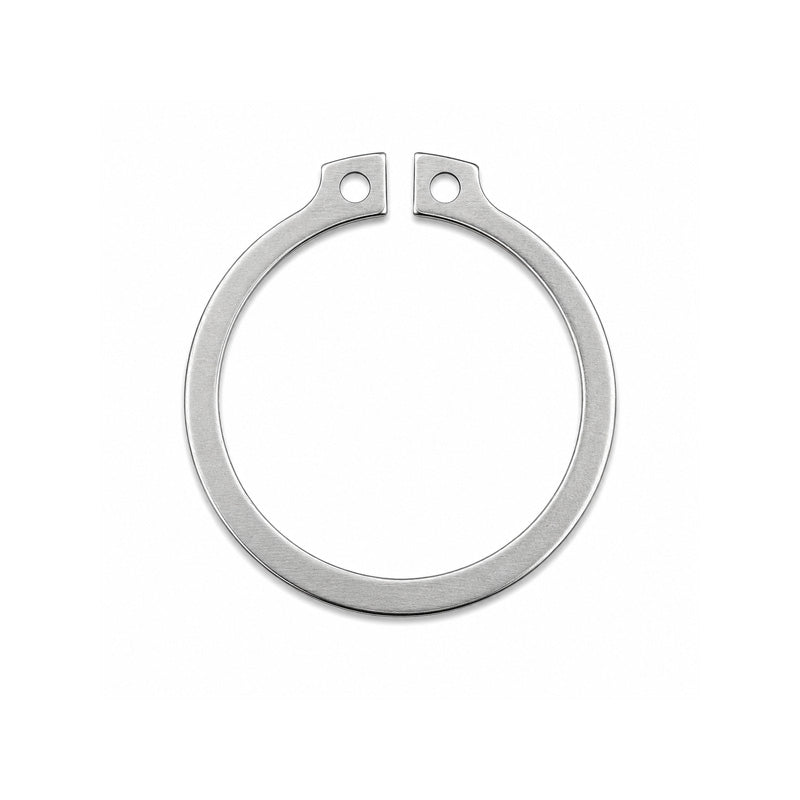

Stainless External Circlip for 18mm Shaft Diameter Un-Sprung Dia 16.5mm
Stainless External Circlip for 18mm Shaft Diameter Un-Sprung Dia 16.5mm
Regular price
CHF 1.00
ex VAT
Regular price
Sale price
CHF 1.00
ex VAT
Equivalent to: SSD1400-018
In stock
Price Break
10+
CHF 0.47
20+
CHF 0.36
50+
CHF 0.26
100+
CHF 0.21
500+
CHF 0.17
1000+
CHF 0.13
Description
Description
|
Stainless Steel External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
Equivalent: SSD1400-018
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 16.5mm
- Material:
- Stainless Steel
- Shaft Size:
- 18mm
- Thickness:
- 1.2mm
- Groove Diameter:
- 17mm
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size | 18mm |
| Thickness s | 1.2mm |
| Thickness tolerance | -0.06mm |
| Unstressed diameter d3 | 16.5mm |
| Unstressed diameter tolerance | +0.10/-0.36mm |
| Lug a | 3.9mm |
| Beam b | 2.4mm |
| d5 | 2mm |
| Weight | 1.11 g |
| --- | Groove Details |
| Groove diameter | 17mm |
| Groove tolerance | -0.11mm |
| Minimum groove width | 1.3mm |
| Groove depth | 0.5mm |
