SKU: SS.D1500-0080

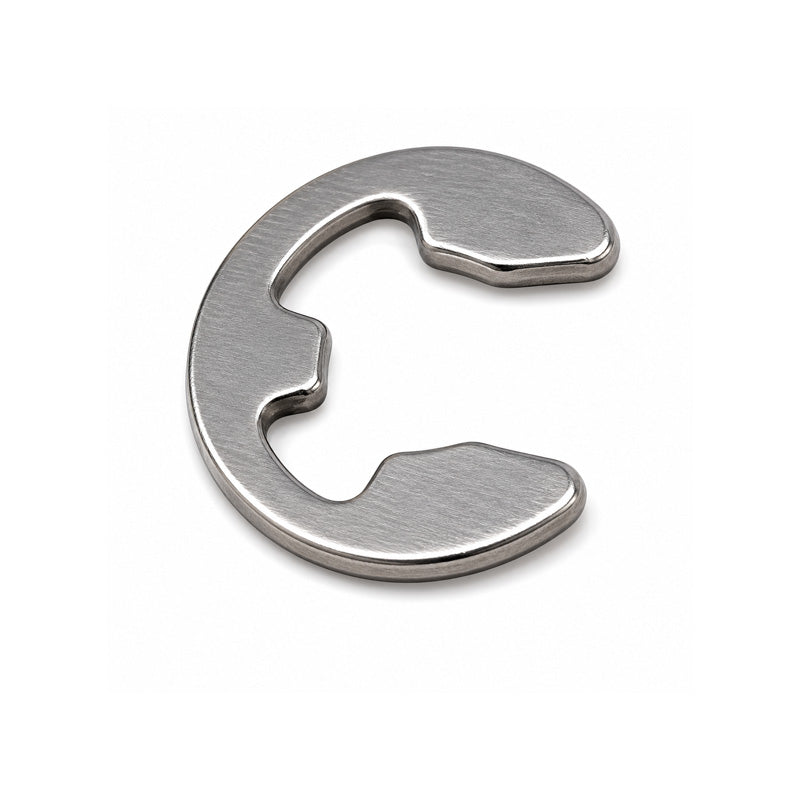

Stainless Steel E-Clip for 8mm Groove Diameter
Stainless Steel E-Clip for 8mm Groove Diameter
Regular price
CHF 1.00
ex VAT
Regular price
Sale price
CHF 1.00
ex VAT
Equivalent to: SS.D1500-0080
In stock
Price Break
10+
CHF 0.43
20+
CHF 0.29
50+
CHF 0.18
100+
CHF 0.15
500+
CHF 0.09
1000+
CHF 0.08
Description
Description
|
E-Clips: The most common form of radially fitted circlips for shafts with grooves. Provide a large shoulder on a relatively small shaft diameter. Only the groove size is critical with this type of circlip, the shaft diameter can vary slightly. Material: Stainless Steel Benefits: Cost effective replacement, durable, removable. |
Equivalent: SS.D1500-0080
- Brand / Quality:
- Simply E-Clips - Economy Quality
- Material:
- Stainless Steel
- Shaft Size:
- 10mm
- Thickness:
- 1mm
- Groove Diameter:
- 8mm
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (d1) | 10mm |
| Shaft Range | 9mm to 12mm |
| Thickness (s) | 1mm |
| Thickness Tolerance | ±0.03mm |
| Max Outisde Diameter (d4) | 15.75mm |
| Shoulder Length (n) | 1.8mm |
| a | 6.52mm |
| a Tolerance | ±0.058mm |
| Weight | 0.66kg |
| --- | Speeds and Load Ratings |
| Max Fling Off Speed | 20000rpm |
| --- | Groove Requirements |
| Groove Diameter (d2) | 8mm |
| Groove Diameter Tolerance | +0mm / -0.09mm |
| Groove Width (m) | 1.05mm |
| Groove Depth (g) | 1.5mm |
