SKU: SS.PFL-6

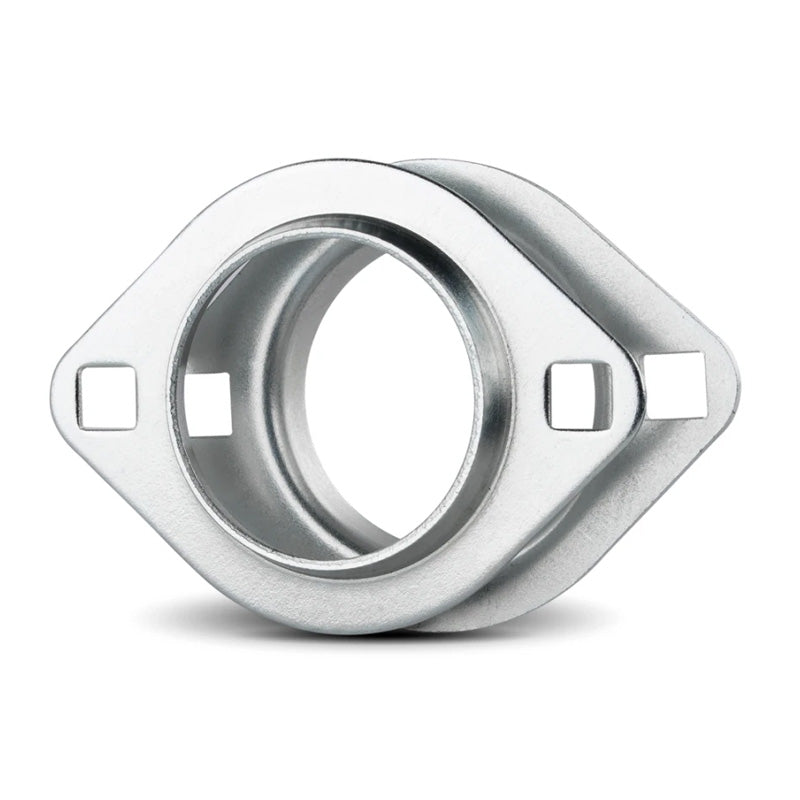

SSPFL-6 Pressed Stainless Steel 2 Bolt Oval Bearing Housing for SA and SB 206 Inserts
SSPFL-6 Pressed Stainless Steel 2 Bolt Oval Bearing Housing for SA and SB 206 Inserts
Regular price
CHF 20.00
ex VAT
Regular price
Sale price
CHF 20.00
ex VAT
In stock
Price Break
3+
CHF 15.35
5+
CHF 14.48
9+
CHF 14.31
19+
CHF 14.14
49+
CHF 13.97
74+
CHF 13.79
99+
CHF 12.93
199+
CHF 12.76
249+
CHF 12.59
499+
CHF 12.42
999+
CHF 12.07
Description
Description
2 Bolt Oval Pressed Stainless Steel Bearing Housings: These housings are a simple economical housed housing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required.
Insert are NOT supplied with this housing.
Benefits: Cost effective housing
- Brand / Quality:
- EU Budget - Economy Quality
- Bolt Hole Centres:
- 90.5mm

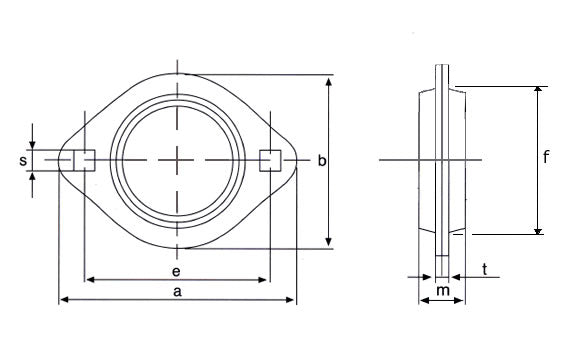

Technical
Technical
| a | 113mm Approx. |
|---|---|
| e | 90.5mm Approx. |
| b | 84mm Approx. |
| m | 18mm Approx. |
| s | 11mm Approx. |
| t | 5.2mm Approx. |
| f | 71mm Approx. |
| Weight | 0.38kg |
