SKU: SS.PFT-6

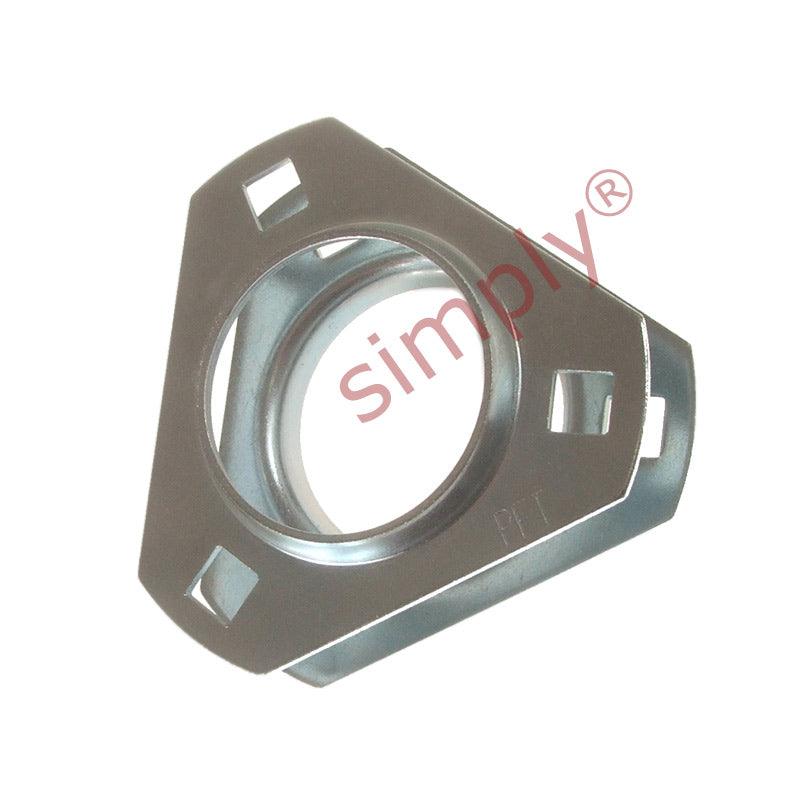

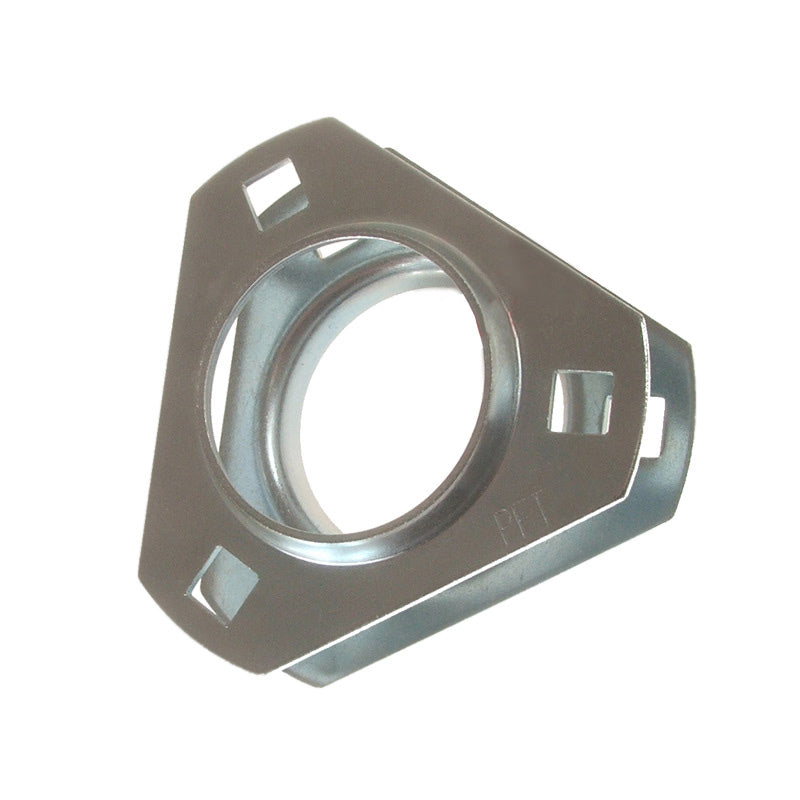

SSPFT-6 Pressed Stainless Steel 3 Bolt Triangle Flange Housing for SA and SB 206 Inserts
SSPFT-6 Pressed Stainless Steel 3 Bolt Triangle Flange Housing for SA and SB 206 Inserts
Regular price
CHF 25.00
ex VAT
Regular price
Sale price
CHF 25.00
ex VAT
In stock
Price Break
3+
CHF 19.73
5+
CHF 18.62
9+
CHF 18.40
19+
CHF 18.18
49+
CHF 17.96
74+
CHF 17.74
99+
CHF 16.63
199+
CHF 16.41
249+
CHF 16.18
499+
CHF 15.96
999+
CHF 15.52
Description
Description
2 Bolt Pillow Pressed Stainless Steel Bearing Housings: These housings are a simple economical housed housing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required.
An insert is NOT supplied with this housing.
Benefits: Cost effective housing
- Brand / Quality:
- EU Budget - Economy Quality
- Bolt Hole Centres:
- 90.5mm

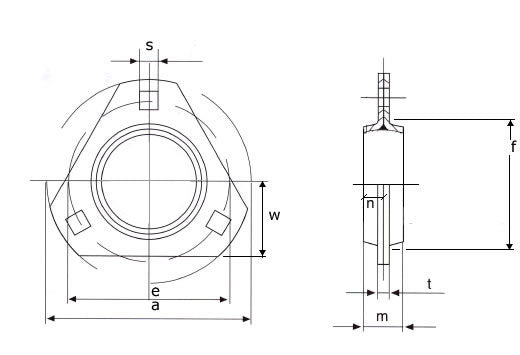

Technical
Technical
| a | 113mm |
|---|---|
| e | 90.5mm |
| w | 40mm |
| mm | 18mm |
| s | 11mm |
| t | 5.2mm |
| f | 71mm |
| n | 9mm |
| Weight | 0.58kg |
