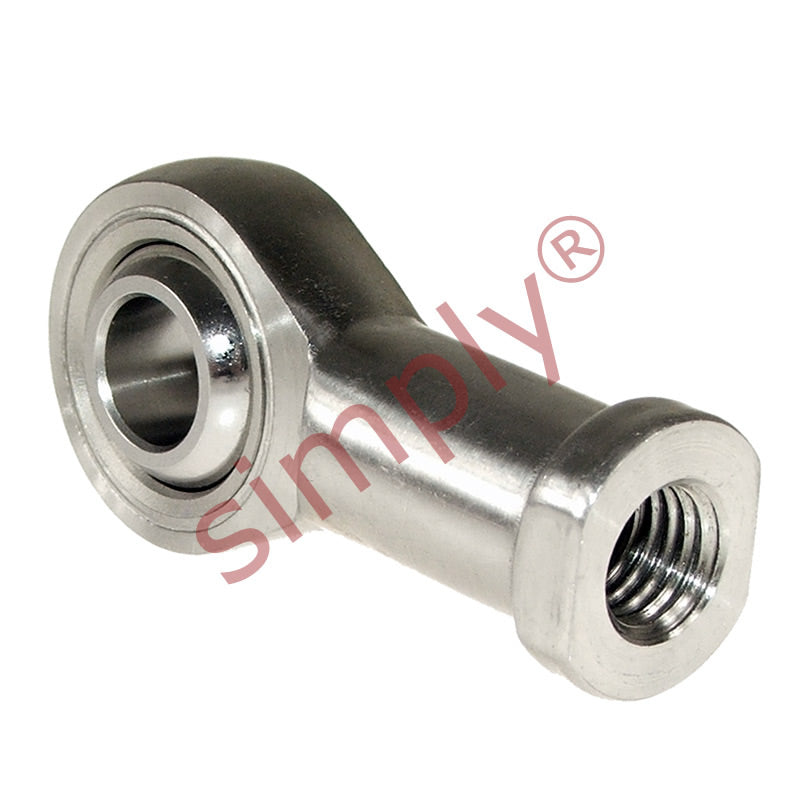

Budget SSPHS10 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 10mm Bore M10x1.5 Thread

Name: Budget SSPHS10 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 10mm Bore M10x1.5 Thread
Brand: Gen
SKU: SS.PHS10.EU
Price: 25.00 CHF
Availability: InStock

CHF 25.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 19.92

19+ CHF 18.80

29+ CHF 18.58

39+ CHF 18.35

49+ CHF 18.13

74+ CHF 17.91

99+ CHF 16.79

199+ CHF 16.56

249+ CHF 16.34

499+ CHF 16.12

999+ CHF 15.67

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Stainless Steel Maintenance Free Female Rod End with PTFE Liner: Right hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M10x1.5
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 10mm
Material:: PTFE Lined

Technical

d	10mm
B	14mm
r1	0.6mm
C1	10.5mm
d1 max	12.9mm
d2	26mm
d3	M10x1.5
h1	43mm
L3	21mm
L4	56mm
L5	6.5mm
d4	15mm
d5	19mm
S	17mm
Ball diameter	3/4 inch
Dynamic load Cr	10mm
Static load Cor	13.6mm
Max angle α	13
Weight	0.072 kg
