SKU: SS.PHS16.EU

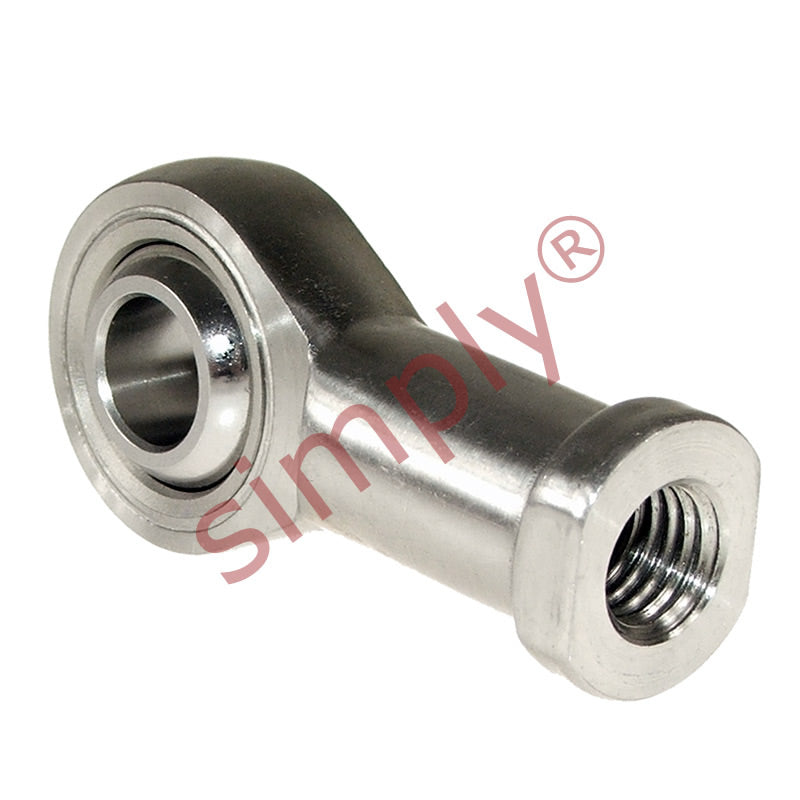

Budget SSPHS16 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 16mm Bore M16x2 Thread

Name: Budget SSPHS16 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 16mm Bore M16x2 Thread
Brand: Gen
SKU: SS.PHS16.EU
Price: 32.00 CHF
Availability: InStock

CHF 32.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 24.96

19+ CHF 23.55

29+ CHF 23.27

39+ CHF 22.99

49+ CHF 22.71

74+ CHF 22.43

99+ CHF 21.03

199+ CHF 20.75

249+ CHF 20.47

499+ CHF 20.19

999+ CHF 19.63

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Stainless Steel Maintenance Free Female Rod End with PTFE Liner: Right hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M16x2
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 16mm
Material:: PTFE Lined

Technical

d	16mm
B	21mm
r1	0.6mm
C1	15mm
d1 max	19.3mm
d2	38mm
d3	M16x2
h1	64mm
L3	33mm
L4	83mm
L5	8mm
d4	22mm
d5	27mm
S	22mm
Ball diameter	1-1/8 inch
Dynamic load Cr	21.4mm
Static load Cor	25.9mm
Max angle α	15
Weight	0.21 kg
