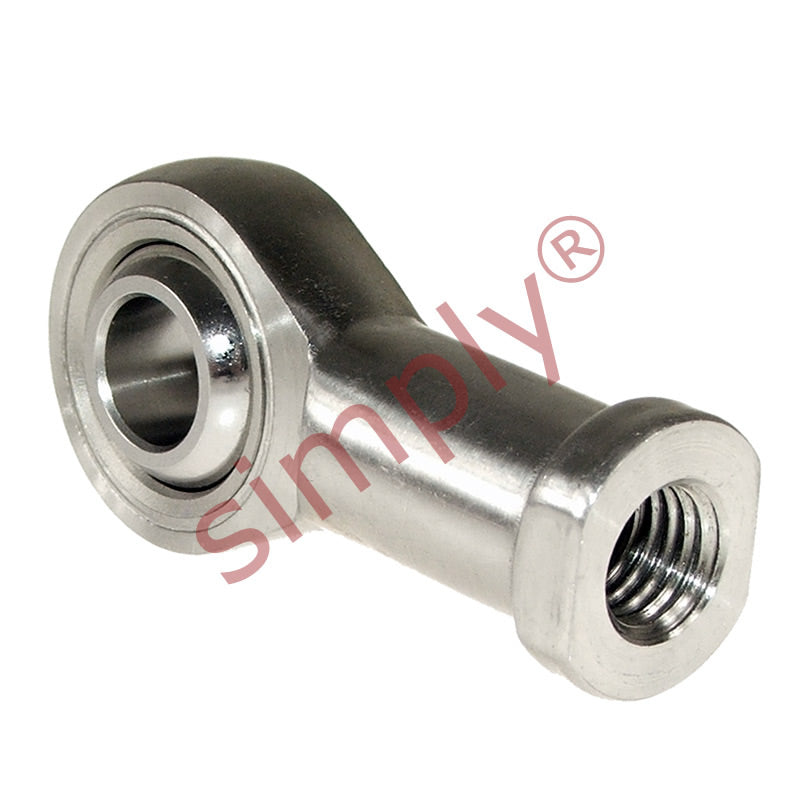

Budget SSPHS25 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 25mm Bore M24x2 Thread

Name: Budget SSPHS25 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 25mm Bore M24x2 Thread
Brand: Gen
SKU: SS.PHS25.EU
Price: 105.00 CHF
Availability: InStock

CHF 105.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 83.46

19+ CHF 78.77

29+ CHF 77.83

39+ CHF 76.90

49+ CHF 75.96

74+ CHF 75.02

99+ CHF 70.33

199+ CHF 69.39

249+ CHF 68.46

499+ CHF 67.52

999+ CHF 65.64

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Stainless Steel Maintenance Free Female Rod End with PTFE Liner: Right hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M24x2
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 25mm
Material:: PTFE Lined

Technical

d	25mm
B	31mm
r1	0.6mm
C1	22mm
d1 max	29.5mm
d2	60mm
d3	M24x2
h1	94mm
L3	48mm
L4	124mm
L5	12mm
d4	33.5mm
d5	42mm
S	36mm
Ball diameter	1-11/16 inch
Dynamic load Cr	47.1mm
Static load Cor	74.1mm
Max angle α	15
Weight	0.75 kg
