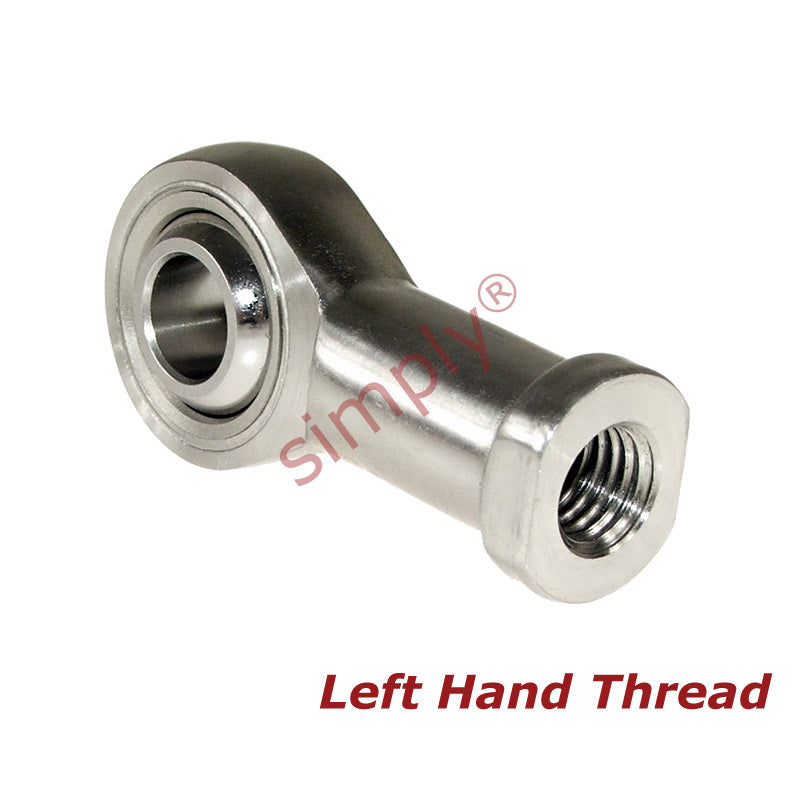

Budget SSPHS5L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 5mm Bore M5x0.8 Thread

Name: Budget SSPHS5L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 5mm Bore M5x0.8 Thread
Brand: Gen
SKU: SS.PHS5L.EU
Price: 10.00 CHF
Availability: InStock

CHF 10.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 7.68

19+ CHF 7.25

29+ CHF 7.16

39+ CHF 7.08

49+ CHF 6.99

74+ CHF 6.90

99+ CHF 6.47

199+ CHF 6.39

249+ CHF 6.30

499+ CHF 6.21

999+ CHF 6.04

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Stainless Steel Maintenance Free Female Rod End with PTFE Liner: LEFT hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M5x0.8
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 5mm
Material:: PTFE Lined

Technical

d	5mm
B	8mm
r1	0.3mm
C1	6mm
d1 max	7.7mm
d2	16mm
d3	M5x0.8
h1	27mm
L3	13mm
L4	35mm
L5	4mm
d4	9mm
d5	11mm
S	9mm
Ball diameter	7/16 inch
Dynamic load Cr	3.3mm
Static load Cor	5.8mm
Max angle α	13
Weight	0.0165 kg
