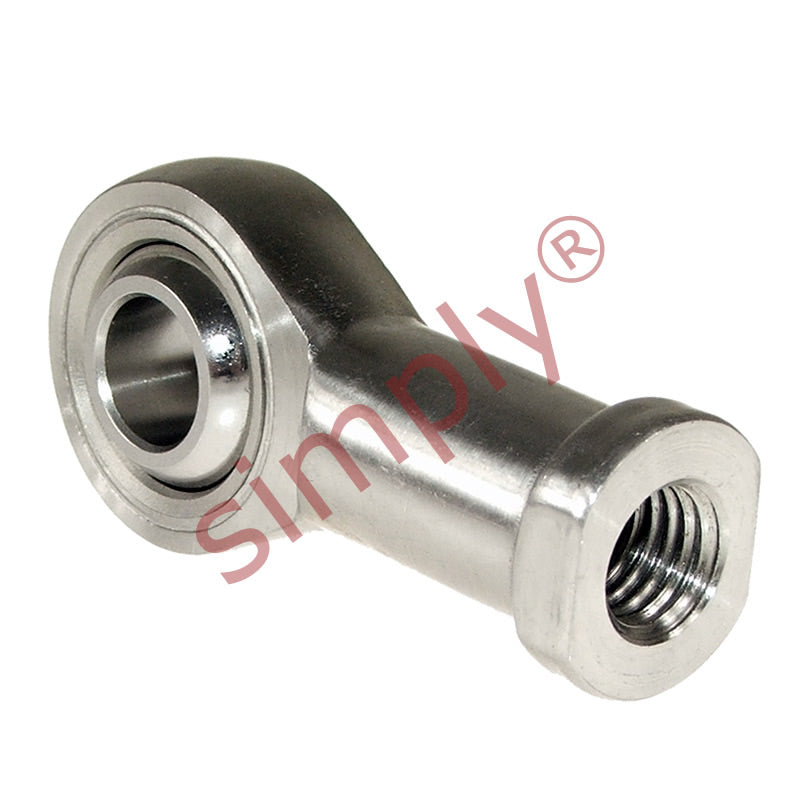

Budget SSPHS8 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 8mm Bore M8x1.25 Thread

Name: Budget SSPHS8 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 8mm Bore M8x1.25 Thread
Brand: Gen
SKU: SS.PHS8.EU
Price: 10.00 CHF
Availability: InStock

CHF 10.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 7.68

19+ CHF 7.25

29+ CHF 7.16

39+ CHF 7.08

49+ CHF 6.99

74+ CHF 6.90

99+ CHF 6.47

199+ CHF 6.39

249+ CHF 6.30

499+ CHF 6.21

999+ CHF 6.04

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Stainless Steel Maintenance Free Female Rod End with PTFE Liner: Right hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M8x1.25
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 8mm
Material:: PTFE Lined

Technical

d	8mm
B	12mm
r1	0.3mm
C1	9mm
d1 max	10.3mm
d2	22mm
d3	M8x1.25
h1	36mm
L3	17mm
L4	47mm
L5	5mm
d4	[12.5mm
d5	16mm
S	14mm
Ball diameter	5/8 inch
Dynamic load Cr	7.1mm
Static load Cor	10.4mm
Max angle α	14
Weight	0.043 kg
