SKU: SS.POS12L.EU

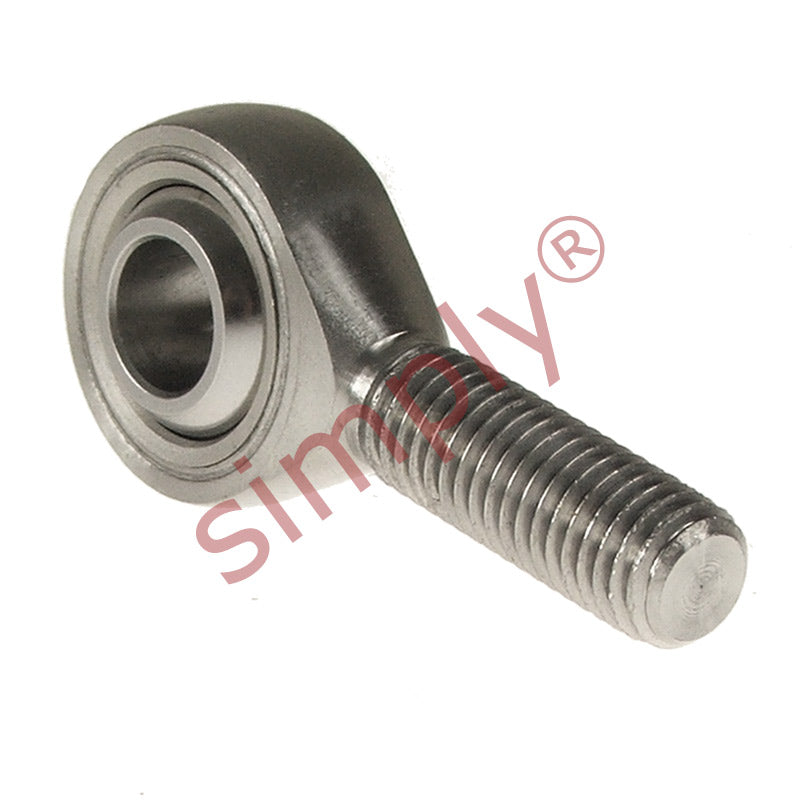

Budget SSPOS12L Left Hand Stainless Steel / PTFE Lined Plain Male Rod End 12mm Bore M12x1.75 Thread
Budget SSPOS12L Left Hand Stainless Steel / PTFE Lined Plain Male Rod End 12mm Bore M12x1.75 Thread
Regular price
CHF 33.00
ex VAT
Regular price
Sale price
CHF 33.00
ex VAT
In stock
Price Break
10+
CHF 26.17
19+
CHF 24.70
29+
CHF 24.41
39+
CHF 24.12
49+
CHF 23.82
74+
CHF 23.53
99+
CHF 22.06
199+
CHF 21.76
249+
CHF 21.47
499+
CHF 21.18
999+
CHF 20.59
Description
Description
|
Stainless Steel Maintenance Free Male Rod End with PTFE Liner: LEFT hand thread male rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M12x1.75
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 12mm
- Material:
- PTFE Lined
Technical
Technical
| d | 12mm |
|---|---|
| B | 16mm |
| r1 | 0.6mm |
| C1 | 12mm |
| d1 max | 15.4mm |
| d2 | 30mm |
| d3 | M12x1.75 |
| h | 54mm |
| l1 | 33mm |
| l2 | 69mm |
| Ball diameter | 7/8 inch |
| Dynamic load Cr | 13.3 kN |
| Static load Cor | 17.3 kN |
| Max angle α | 13 |
| Weight | 0.085 kg |
