SKU: SS.POS14.EU

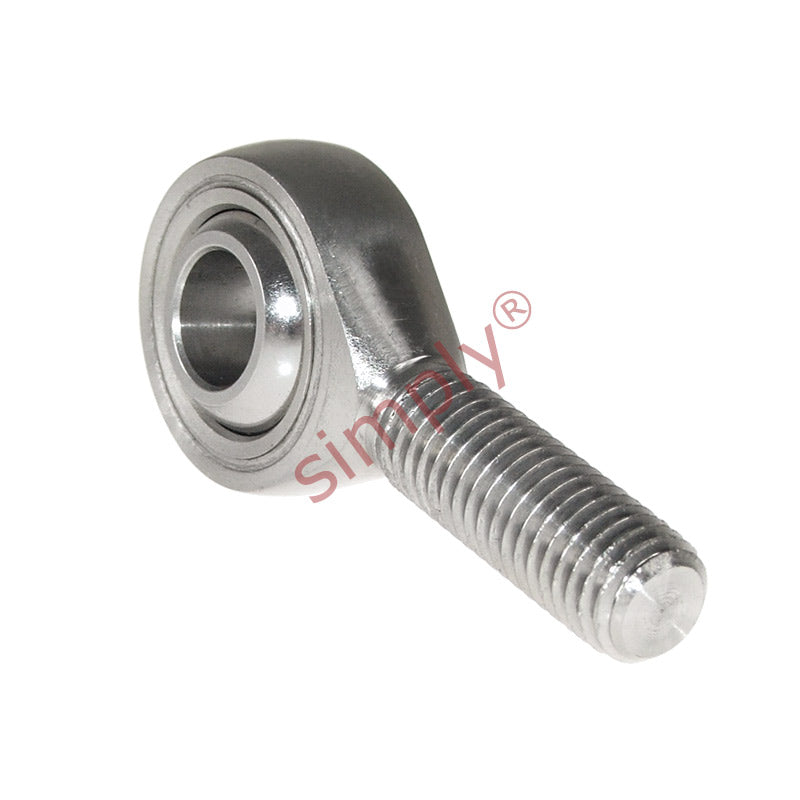

Budget SSPOS14 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 14mm Bore M14x2 Thread
Budget SSPOS14 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 14mm Bore M14x2 Thread
Regular price
CHF 42.00
ex VAT
Regular price
Sale price
CHF 42.00
ex VAT
In stock
Price Break
10+
CHF 33.17
19+
CHF 31.31
29+
CHF 30.93
39+
CHF 30.56
49+
CHF 30.19
74+
CHF 29.82
99+
CHF 27.95
199+
CHF 27.58
249+
CHF 27.21
499+
CHF 26.84
999+
CHF 26.09
Description
Description
|
Stainless Steel Maintenance Free Male Rod End with PTFE Liner: Right hand thread male rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M14x2
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 14mm
- Material:
- PTFE Lined
Technical
Technical
| d | 14mm |
|---|---|
| B | 19mm |
| r1 | 0.6mm |
| C1 | 13.5mm |
| d1 max | 16.8mm |
| d2 | 34mm |
| d3 | M14x2 |
| h | 60mm |
| l1 | 36mm |
| l2 | 77mm |
| Ball diameter | 1 inch |
| Dynamic load Cr | 17.1 kN |
| Static load Cor | 21.3 kN |
| Max angle α | 16 |
| Weight | 0.126 kg |
