SKU: SS.POS25L.EU

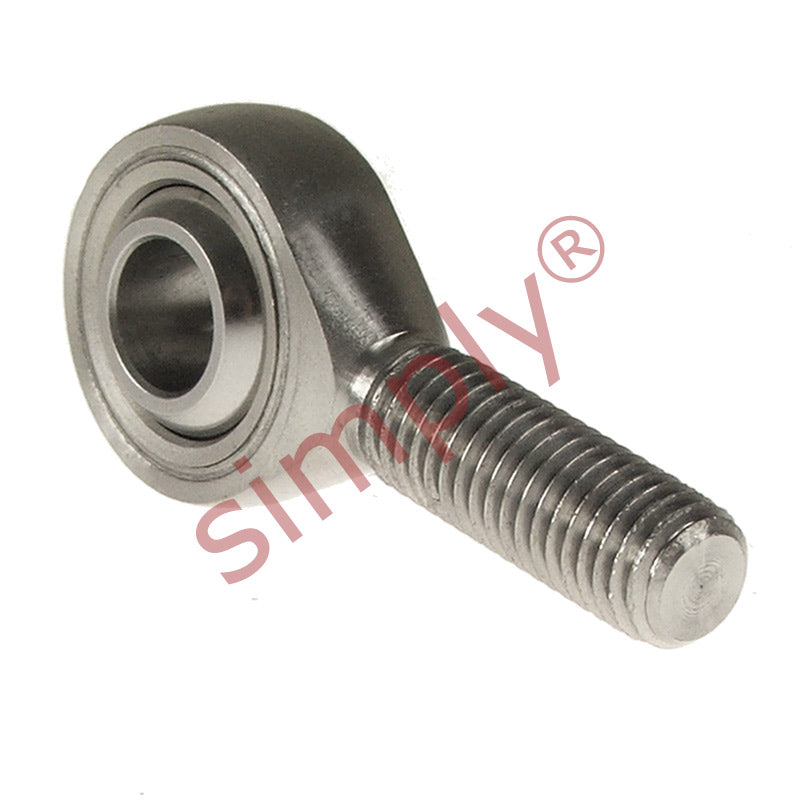

Budget SSPOS25L Left Hand Stainless Steel / PTFE Lined Plain Male Rod End 25mm Bore M24x2 Thread
Budget SSPOS25L Left Hand Stainless Steel / PTFE Lined Plain Male Rod End 25mm Bore M24x2 Thread
Regular price
CHF 22.00
ex VAT
Regular price
Sale price
CHF 22.00
ex VAT
In stock
Price Break
10+
CHF 16.79
19+
CHF 15.85
29+
CHF 15.66
39+
CHF 15.47
49+
CHF 15.28
74+
CHF 15.10
99+
CHF 14.15
199+
CHF 13.96
249+
CHF 13.78
499+
CHF 13.59
999+
CHF 13.21
Description
Description
|
Stainless Steel Maintenance Free Male Rod End with PTFE Liner: LEFT hand thread male rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M24x2
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 25mm
- Material:
- PTFE Lined
Technical
Technical
| d | 25mm |
|---|---|
| B | 31mm |
| r1 | 0.6mm |
| C1 | 22mm |
| d1 max | 29.5mm |
| d2 | 60mm |
| d3 | M24x2 |
| h | 94mm |
| l1 | 57mm |
| l2 | 124mm |
| Ball diameter | 1-11/16 inch |
| Dynamic load Cr | 47.1 kN |
| Static load Cor | 74.1 kN |
| Max angle α | 15 |
| Weight | 0.65 kg |
