SKU: SS.SB205

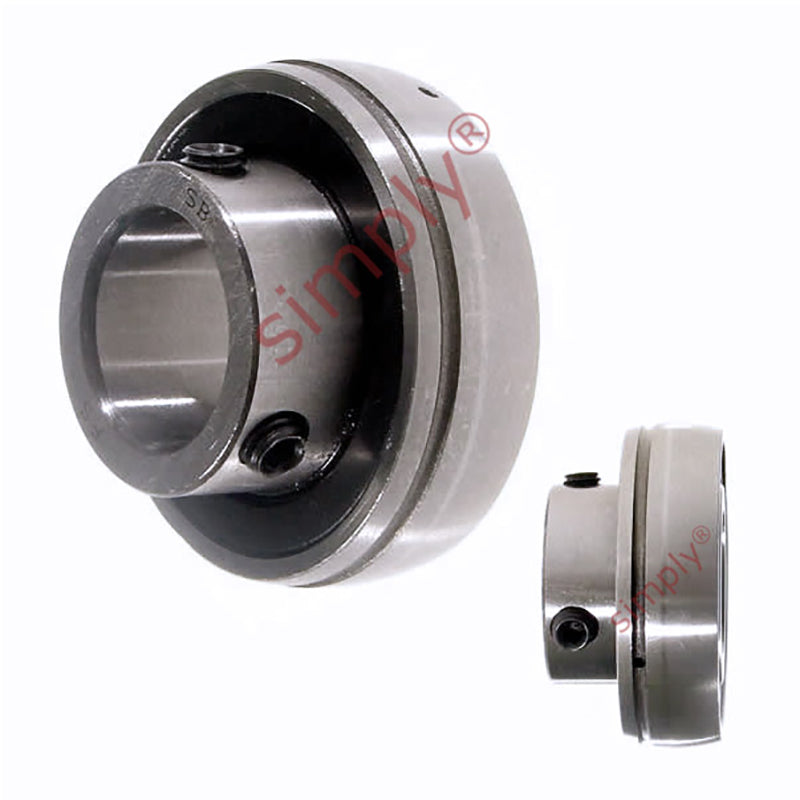

SSSB205 Stainless Steel Metric Bearing Insert with 25mm Bore 52mm Outside Dia
SSSB205 Stainless Steel Metric Bearing Insert with 25mm Bore 52mm Outside Dia
Regular price
CHF 16.00
ex VAT
Regular price
Sale price
CHF 16.00
ex VAT
In stock
Price Break
3+
CHF 12.20
5+
CHF 11.52
9+
CHF 11.38
19+
CHF 11.24
49+
CHF 11.11
74+
CHF 10.97
99+
CHF 10.28
199+
CHF 10.15
249+
CHF 10.01
499+
CHF 9.87
999+
CHF 9.60
Description
Description
SB Stainless Steel Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.
Benefits: Cost effective bearing insert, grub screw fixing, flat back design
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
Technical
Technical
| Shaft Dia | 25mm |
|---|---|
| Be | 15mm |
| D | 52mm |
| Bi | 27mm |
| n | 7mm |
| m | 18mm |
| G | 4.5mm |
| h | 3.9mm |
| ds | M6X1.0 |
| Dynamic Load | 1100 kgf |
| Static Load | 710 kgf |
| Weight | 0.18kg |
