SKU: SSBFBL.PL.209

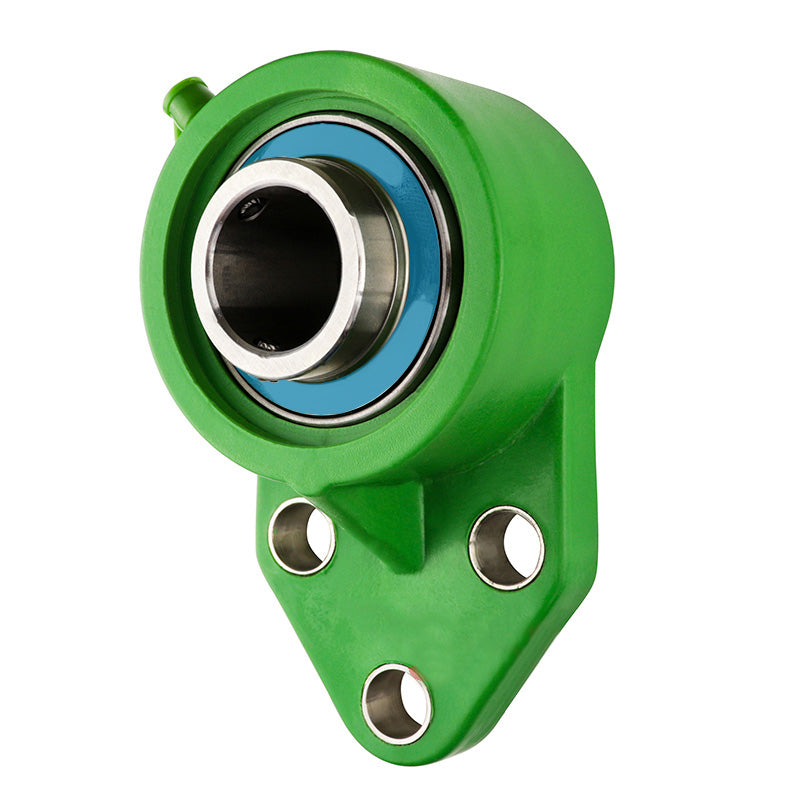

SSBFBLPL209 Metric Thermo Plastic Three Bolt Bracket Flange Housing with 45mm Bore Stainless Insert
SSBFBLPL209 Metric Thermo Plastic Three Bolt Bracket Flange Housing with 45mm Bore Stainless Insert
Regular price
CHF 56.77
ex VAT
Regular price
Sale price
CHF 56.77
ex VAT
In stock
Price Break
10+
CHF 50.53
19+
CHF 47.69
29+
CHF 47.12
39+
CHF 46.55
49+
CHF 45.98
74+
CHF 45.42
99+
CHF 42.58
199+
CHF 42.01
249+
CHF 41.44
499+
CHF 40.87
999+
CHF 39.74
Couldn't load pickup availability
Description
Description
Three Bolt Thermoplastic Flange Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required. Insert is filled with food-grade grease.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SSBFBL
- Bolt Hole Centres:
- 54mm
Technical
Technical
| d | 45mm |
|---|---|
| a | 121mm |
| e | 35mm |
| b | 106mm |
| g | 18mm |
| L | s |
| i | Bi |
| n | 19mm |
| Bolt | M12 |
| Weight | 0.34kg |
| Temperature Range | -35 to 102 deg C |
