SKU: SSBP.PL.205

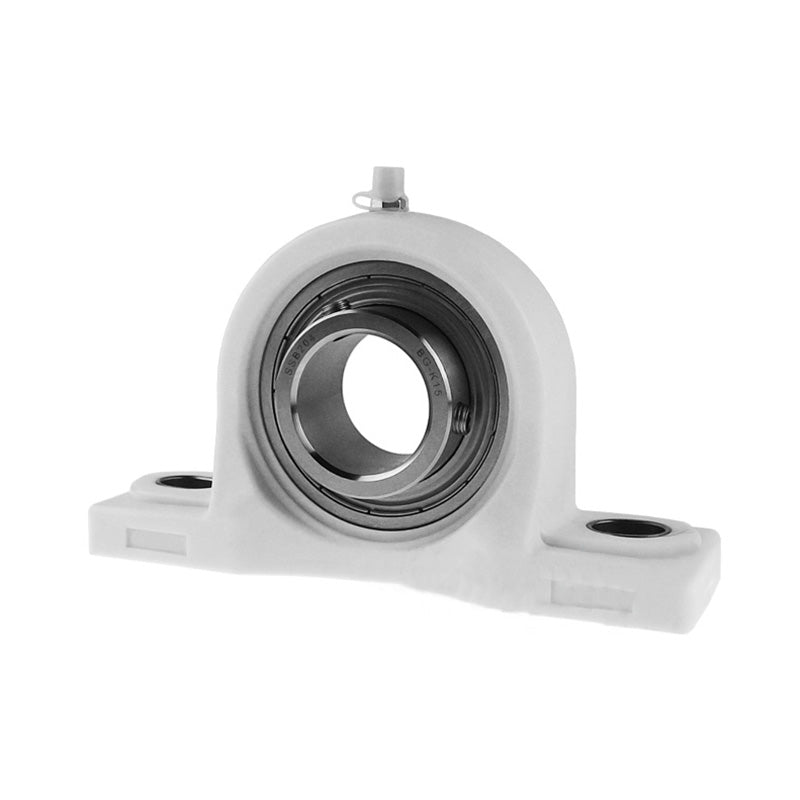

SSBPPL205 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 25mm Bore Stainless Insert
SSBPPL205 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 25mm Bore Stainless Insert
Regular price
CHF 35.99
ex VAT
Regular price
Sale price
CHF 35.99
ex VAT
In stock
Price Break
10+
CHF 32.03
19+
CHF 30.23
29+
CHF 29.87
39+
CHF 29.51
49+
CHF 29.15
74+
CHF 28.79
99+
CHF 26.99
199+
CHF 26.63
249+
CHF 26.27
499+
CHF 25.91
999+
CHF 25.19
Couldn't load pickup availability
Description
Description
SSBPPL Thermo Plastic Two Bolt Pillow / Plummer Block Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SSBP
- Bolt Hole Centres:
- 105mm
Technical
Technical
| d | 25mm |
|---|---|
| h | 36mm |
| a | 140.5mm |
| e | 105mm |
| b | 38mm |
| g | 14.5mm |
| s1 | 11mm |
| s2 | 14mm |
| w | 71.5mm |
| Bi | 34mm |
| n | 14.5mm |
| Bolt | 10mm |
| Weight | 0.14kg |
| Temperature Range | -35 to 102 deg C |
