SKU: SSBP.PL.206

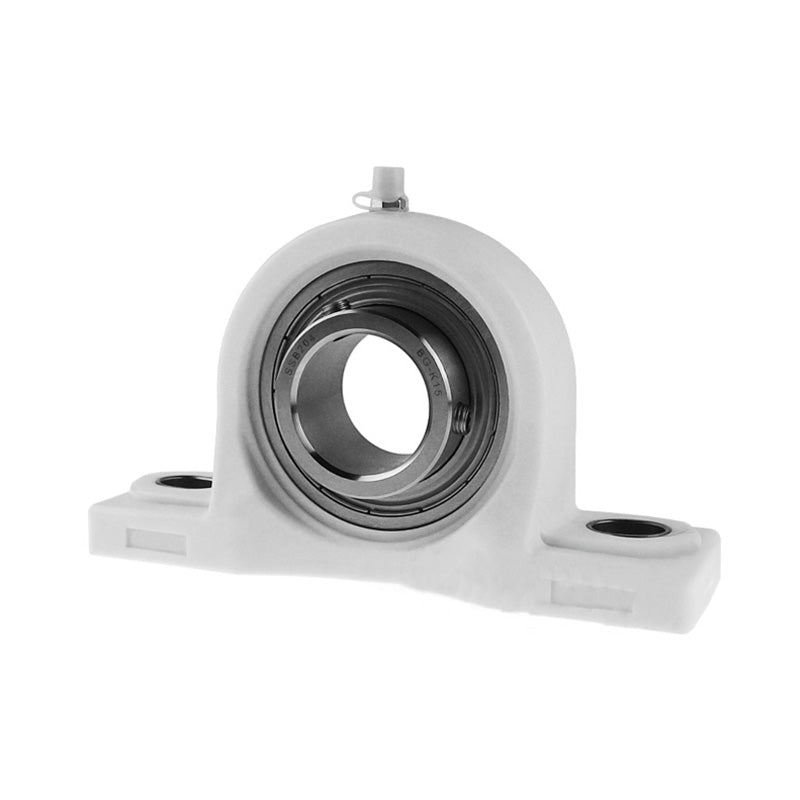

SSBPPL206 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 30mm Bore Stainless Insert
SSBPPL206 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 30mm Bore Stainless Insert
Regular price
CHF 27.22
ex VAT
Regular price
Sale price
CHF 27.22
ex VAT
In stock
Price Break
10+
CHF 24.23
19+
CHF 22.86
29+
CHF 22.59
39+
CHF 22.32
49+
CHF 22.05
74+
CHF 21.78
99+
CHF 20.42
199+
CHF 20.14
249+
CHF 19.87
499+
CHF 19.60
999+
CHF 19.05
Couldn't load pickup availability
Description
Description
SSBPPL Thermo Plastic Two Bolt Pillow / Plummer Block Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SSBP
- Bolt Hole Centres:
- 119mm
Technical
Technical

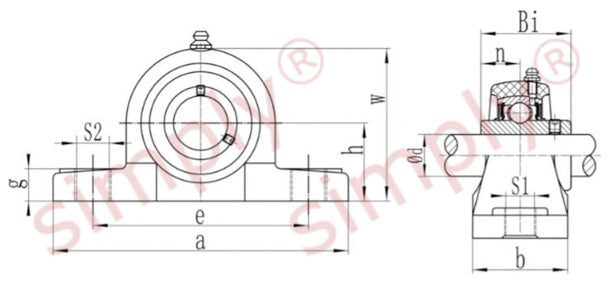

| d | 30mm |
|---|---|
| h | 43mm |
| a | 163.5mm |
| e | 119mm |
| b | 46mm |
| g | 18mm |
| s1 | 14mm |
| s2 | 18mm |
| w | 83.5mm |
| Bi | 38mm |
| n | 16mm |
| Bolt | 12mm |
| Weight | 0.2kg |
| Temperature Range | -35 to 102 deg C |
