SKU: SSBPA.PL.204

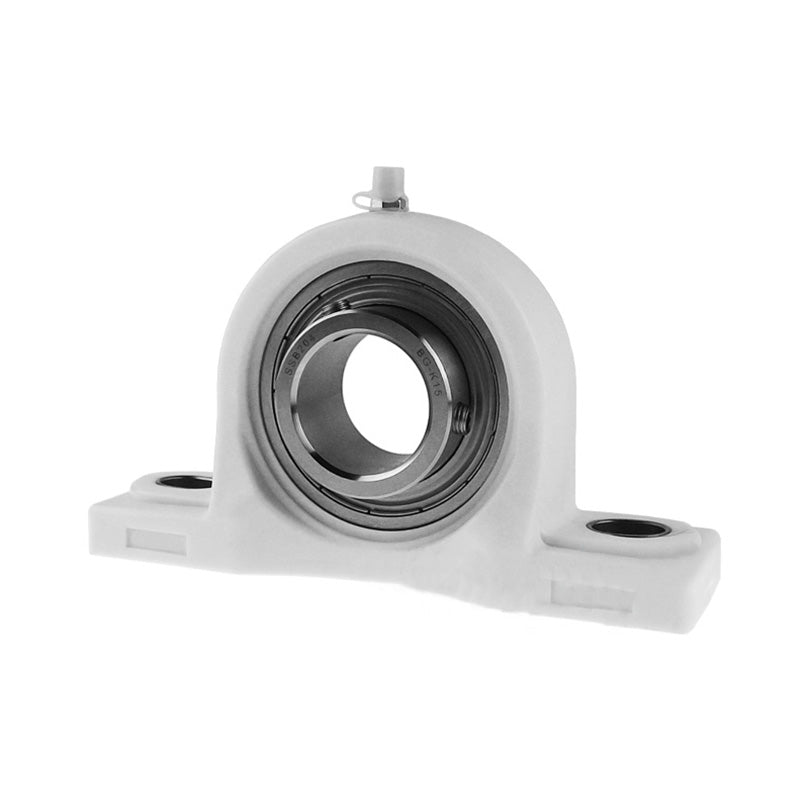

SSBPAPL204 Metric Thermo Plastic Threaded Base Small Footprint Pillow / Plummer Block Housing with 20mm Bore Stainless Insert
SSBPAPL204 Metric Thermo Plastic Threaded Base Small Footprint Pillow / Plummer Block Housing with 20mm Bore Stainless Insert
Regular price
CHF 17.17
ex VAT
Regular price
Sale price
CHF 17.17
ex VAT
In stock
Price Break
10+
CHF 15.28
19+
CHF 14.42
29+
CHF 14.25
39+
CHF 14.08
49+
CHF 13.91
74+
CHF 13.74
99+
CHF 12.88
199+
CHF 12.71
249+
CHF 12.53
499+
CHF 12.36
999+
CHF 12.02
Couldn't load pickup availability
Description
Description
SSBPAPL Thermo Plastic Threaded Base Small Footprint Pillow / Plummer Block Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SSBPA
- Bolt Hole Centres:
- 51mm
Technical
Technical
| d | 20mm |
|---|---|
| a | 74mm |
| e | 51mm |
| b | 35mm |
| g | L |
| s | i |
| Bi | 31mm |
| n | 13mm |
| Bolt | 8mm |
| Weight | 0.13kg |
| Temperature Range | -35 to 102 deg C |
