SKU: SSUC.209-28

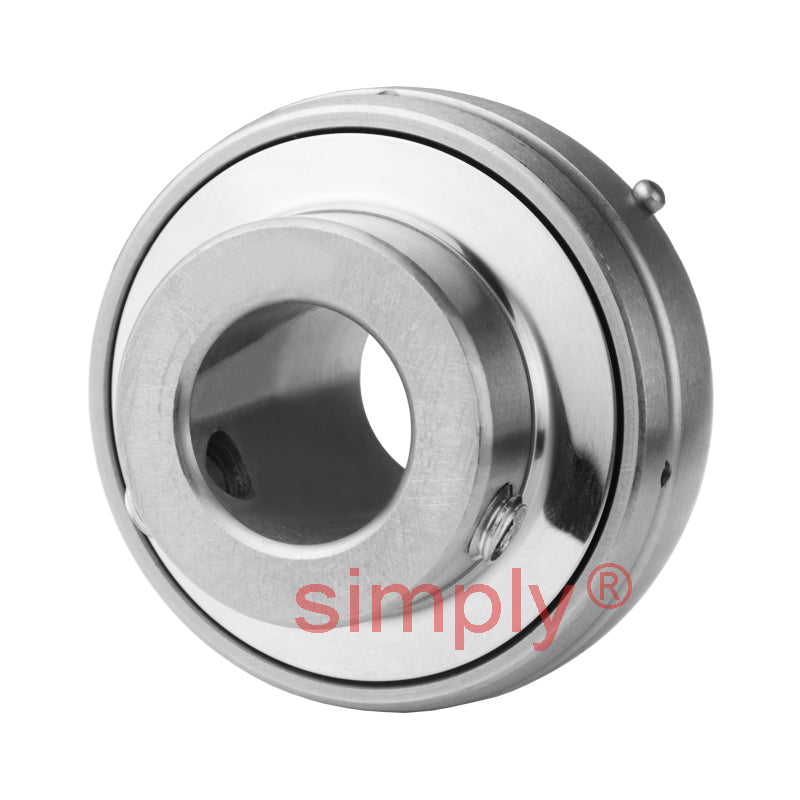

SSUC209-28 Imperial Stainless Steel Bearing Insert with 1-3/4 inch Bore 85mm Outside Dia
SSUC209-28 Imperial Stainless Steel Bearing Insert with 1-3/4 inch Bore 85mm Outside Dia
Regular price
CHF 40.37
ex VAT
Regular price
Sale price
CHF 40.37
ex VAT
In stock
Price Break
10+
CHF 35.93
19+
CHF 33.91
29+
CHF 33.51
39+
CHF 33.10
49+
CHF 32.70
74+
CHF 32.30
99+
CHF 30.28
199+
CHF 29.87
249+
CHF 29.47
499+
CHF 29.07
999+
CHF 28.26
Couldn't load pickup availability
Description
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 85mm
- Style:
- SSUC
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| D | 85mm |
| Bi | 49.2mm |
| Be | 22mm |
| n | 19mm |
| m | 30.2mm |
| G | 10mm |
| Grub screw | 5/16"-24 UNF |
| Weight | 0.7 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
