SKU: SSUC.210-32

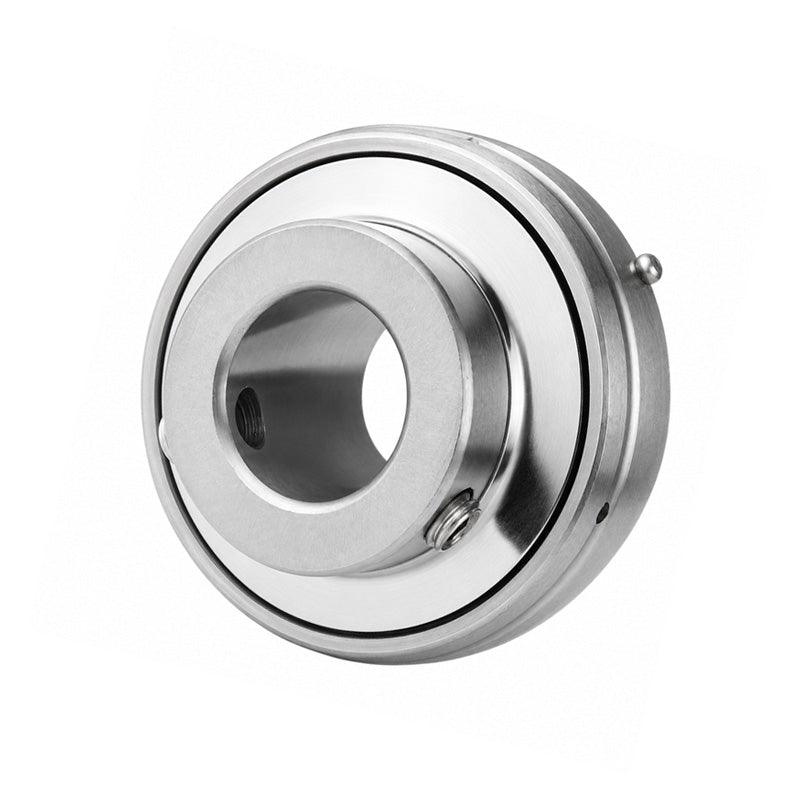

SSUC210-32 Imperial Stainless Steel Bearing Insert with 2 inch Bore 90mm Outside Dia
SSUC210-32 Imperial Stainless Steel Bearing Insert with 2 inch Bore 90mm Outside Dia
Regular price
CHF 32.37
ex VAT
Regular price
Sale price
CHF 32.37
ex VAT
In stock
Price Break
10+
CHF 28.81
19+
CHF 27.19
29+
CHF 26.87
39+
CHF 26.54
49+
CHF 26.22
74+
CHF 25.90
99+
CHF 24.28
199+
CHF 23.95
249+
CHF 23.63
499+
CHF 23.31
999+
CHF 22.66
Couldn't load pickup availability
Description
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 90mm
- Style:
- SSUC
Technical
Technical
| d | 2 inch |
|---|---|
| D | 90mm |
| Bi | 51.6mm |
| Be | 24mm |
| n | 19mm |
| m | 32.6mm |
| G | 10mm |
| Grub screw | 3/8"-24 UNF |
| Weight | 0.82 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
