SKU: SSUCFL.206-20

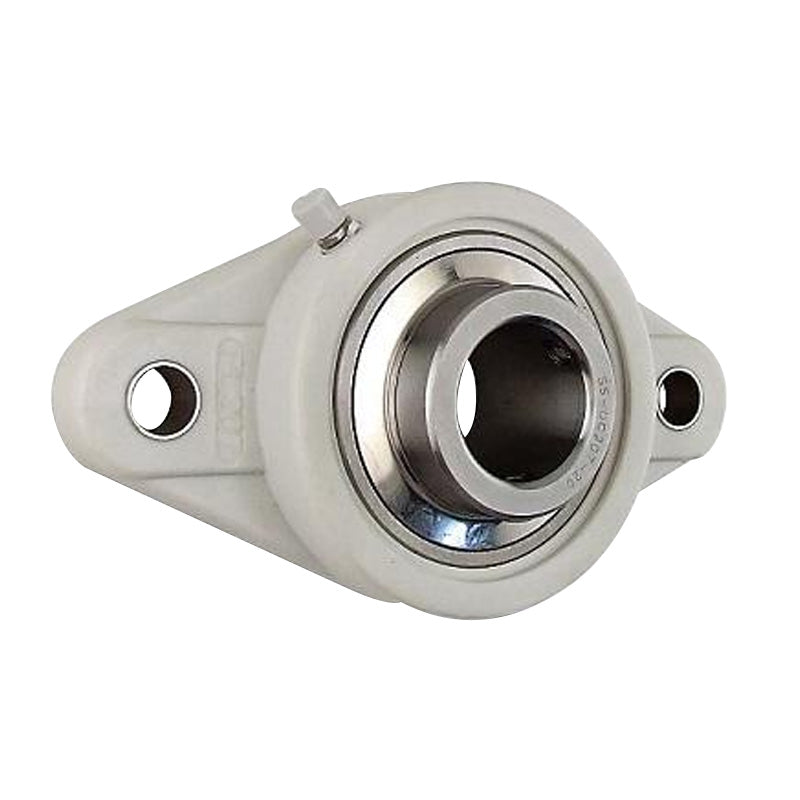

SSUCFL206-20 Imperial Two Bolt Oval Stainless Steel Flange Housing with 1-1/4 inch Bore Stainless Insert
SSUCFL206-20 Imperial Two Bolt Oval Stainless Steel Flange Housing with 1-1/4 inch Bore Stainless Insert
Regular price
CHF 47.00
ex VAT
Regular price
Sale price
CHF 47.00
ex VAT
In stock
Price Break
3+
CHF 36.87
4+
CHF 34.80
9+
CHF 34.39
19+
CHF 33.97
49+
CHF 33.56
99+
CHF 33.14
499+
CHF 31.07
999+
CHF 30.66
1999+
CHF 30.24
2999+
CHF 29.83
4999+
CHF 29.00
Description
Description
|
SSUCFL or SFT Series 2 Bolt Oval Stainless Steel Housings: Bearing unit supplied with a fully sealed stainless steel bearing insert fitted in the oval stainless housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- SSUCFL
- Bolt Hole Centres:
- 117mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| a | 148mm |
| e | 117mm |
| i | 18mm |
| g | 13mm |
| L | 31mm |
| S | 16mm |
| b | 80mm |
| Z | 40.2mm |
| Bi | 38.1mm |
| n | 15.9mm |
| Bolt | 14mm |
| Weight | 0.94 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
