SKU: SSUCP.201

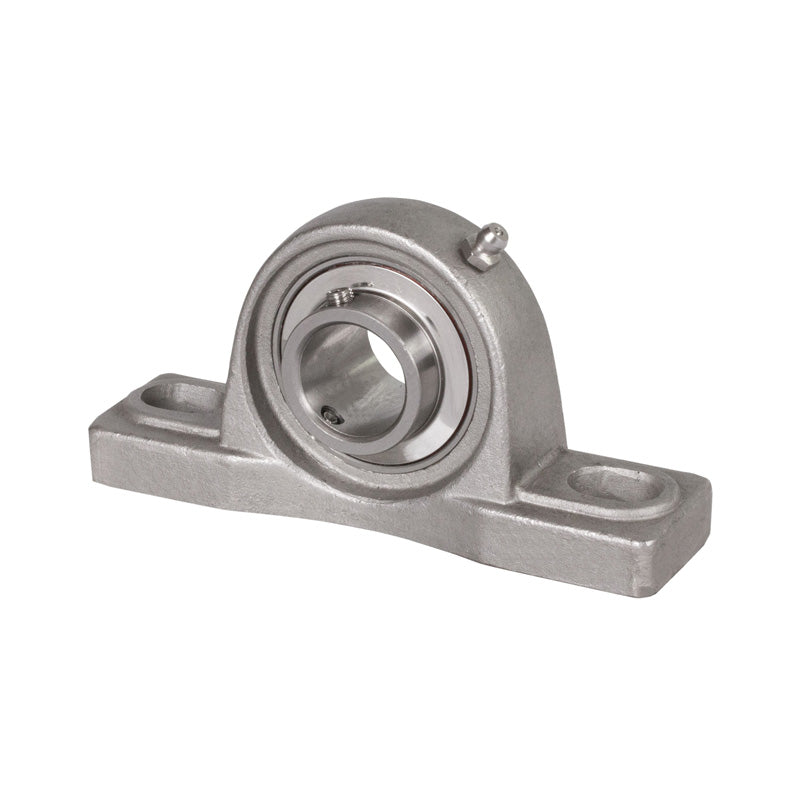

SSUCP201 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 12mm Bore Stainless Insert
SSUCP201 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 12mm Bore Stainless Insert
Regular price
CHF 45.65
ex VAT
Regular price
Sale price
CHF 45.65
ex VAT
Equivalent to: NP12
In stock
Price Break
10+
CHF 40.63
19+
CHF 38.35
29+
CHF 37.89
39+
CHF 37.43
49+
CHF 36.98
74+
CHF 36.52
99+
CHF 34.24
199+
CHF 33.78
249+
CHF 33.32
499+
CHF 32.87
999+
CHF 31.96
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: NP12
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Style:
- SSUCP
- Bolt Hole Centres:
- 96mm
Technical
Technical
| d | 12mm |
|---|---|
| h | 33mm |
| a | 127mm |
| e | 96mm |
| b | 38mm |
| s2 | 19mm |
| s1 | 13mm |
| g | 15mm |
| w | 62mm |
| B1 | 31mm |
| n | 12.7mm |
| Bolt | 10mm |
| Weight | 0.63 kg |
| Dynamic load | 750 kgf |
| Static load | 450 kgf |
| Rec max speed | 8800 rpm |
