SKU: SSUCP.206-20

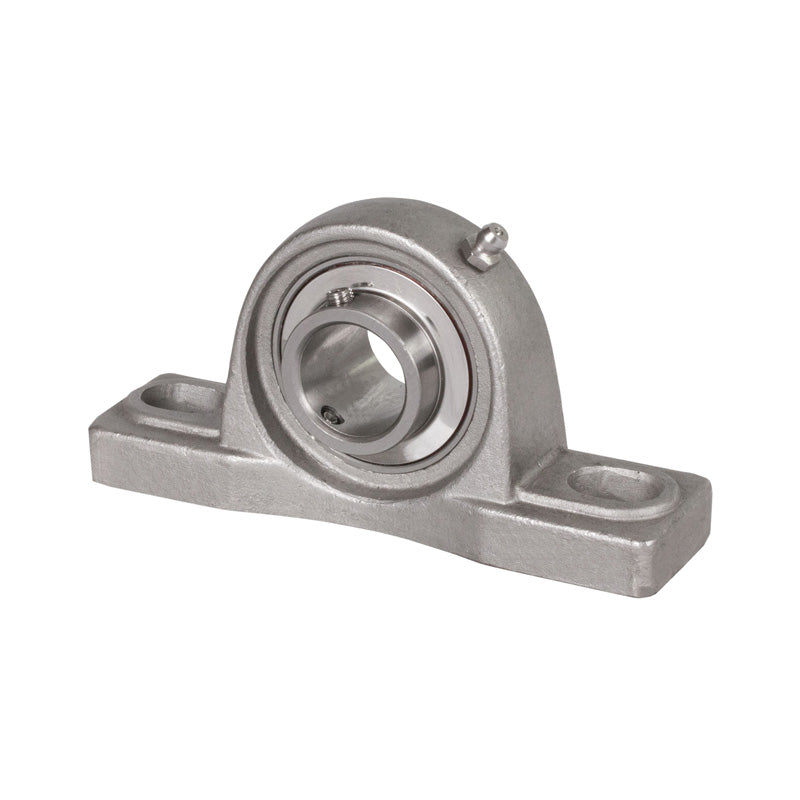

SSUCP206-20 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Bore Stainless Insert
SSUCP206-20 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Bore Stainless Insert
Regular price
CHF 45.82
ex VAT
Regular price
Sale price
CHF 45.82
ex VAT
In stock
Price Break
10+
CHF 40.78
19+
CHF 38.49
29+
CHF 38.03
39+
CHF 37.57
49+
CHF 37.11
74+
CHF 36.66
99+
CHF 34.37
199+
CHF 33.91
249+
CHF 33.45
499+
CHF 32.99
999+
CHF 32.07
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- SSUCP
- Bolt Hole Centres:
- 121mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| h | 42.9mm |
| a | 165mm |
| e | 121mm |
| b | 48mm |
| s2 | 21mm |
| s1 | 17mm |
| g | 18mm |
| w | 83mm |
| B1 | 38.1mm |
| n | 15.9mm |
| Bolt | 14mm |
| Weight | 0.79 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
