SKU: SSUCP.207

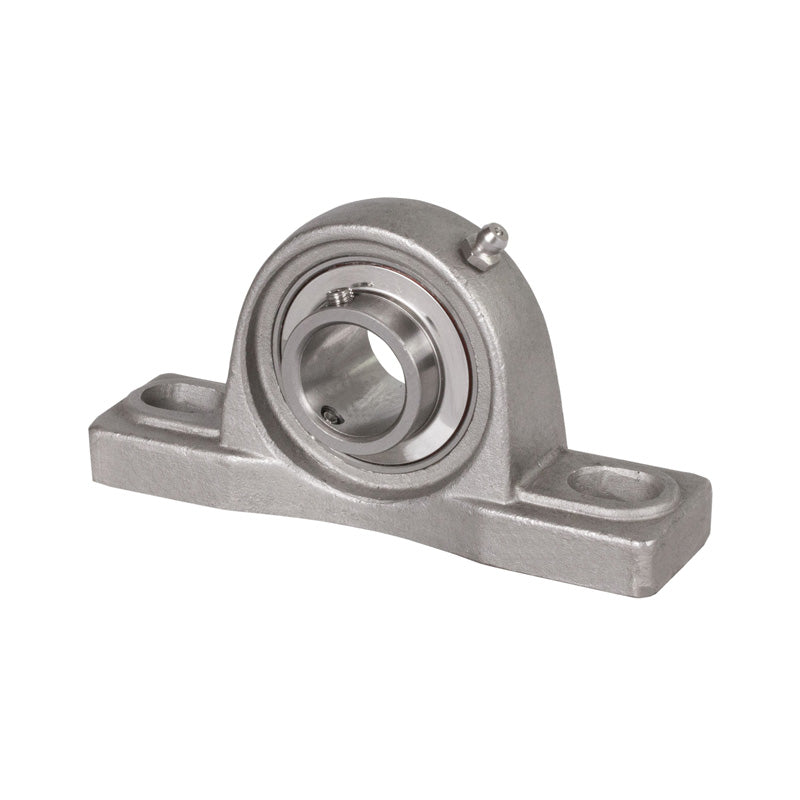

SSUCP207 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 35mm Bore Stainless Insert
SSUCP207 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 35mm Bore Stainless Insert
Regular price
CHF 67.00
ex VAT
Regular price
Sale price
CHF 67.00
ex VAT
Equivalent to: NP35
In stock
Price Break
3+
CHF 53.23
4+
CHF 50.24
9+
CHF 49.64
19+
CHF 49.04
49+
CHF 48.45
99+
CHF 47.85
499+
CHF 44.86
999+
CHF 44.26
1999+
CHF 43.66
2999+
CHF 43.06
4999+
CHF 41.87
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: NP35
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- SSUCP
- Bolt Hole Centres:
- 126mm
Technical
Technical
| d | 35mm |
|---|---|
| h | 47.6mm |
| a | 167mm |
| e | 126mm |
| b | 48mm |
| s2 | 21mm |
| s1 | 17mm |
| g | 19mm |
| w | 92mm |
| B1 | 42.9mm |
| n | 17.5mm |
| Bolt | 14mm |
| Weight | 1.6 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
