SKU: SSUCP.209

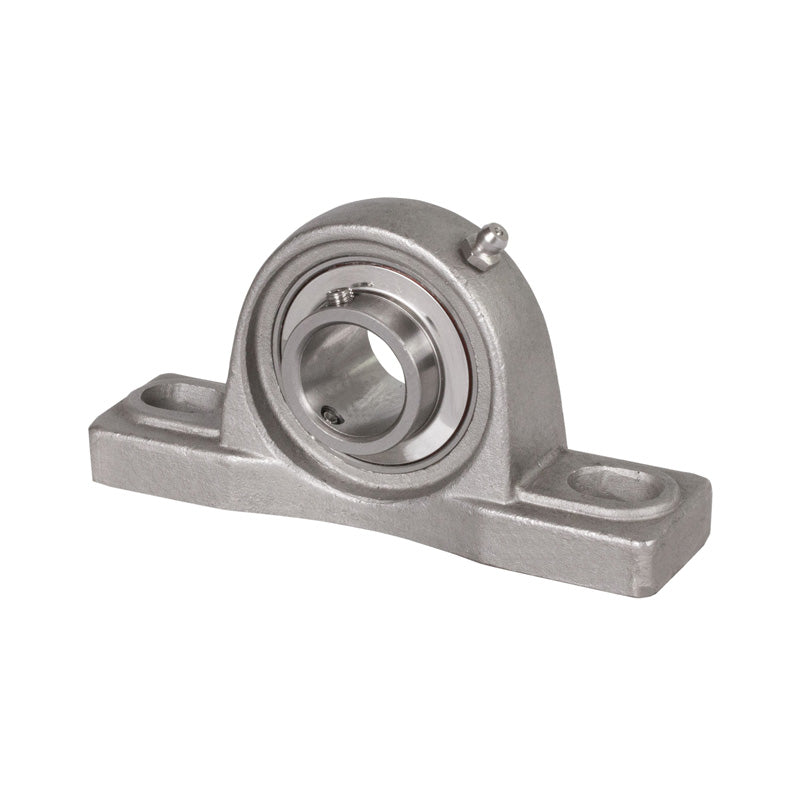

SSUCP209 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 45mm Bore Stainless Insert
SSUCP209 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 45mm Bore Stainless Insert
Regular price
CHF 95.76
ex VAT
Regular price
Sale price
CHF 95.76
ex VAT
Equivalent to: NP45
In stock
Price Break
10+
CHF 85.23
19+
CHF 80.44
29+
CHF 79.48
39+
CHF 78.52
49+
CHF 77.57
74+
CHF 76.61
99+
CHF 71.82
199+
CHF 70.86
249+
CHF 69.90
499+
CHF 68.95
999+
CHF 67.03
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: NP45
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- SSUCP
- Bolt Hole Centres:
- 146mm
Technical
Technical
| d | 45mm |
|---|---|
| h | 54mm |
| a | 190mm |
| e | 146mm |
| b | 54mm |
| s2 | 21mm |
| s1 | 17mm |
| g | 20mm |
| w | 106mm |
| B1 | 49.2mm |
| n | 19mm |
| Bolt | 14mm |
| Weight | 2.2 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 3700 rpm |
