SKU: SSUCP.210

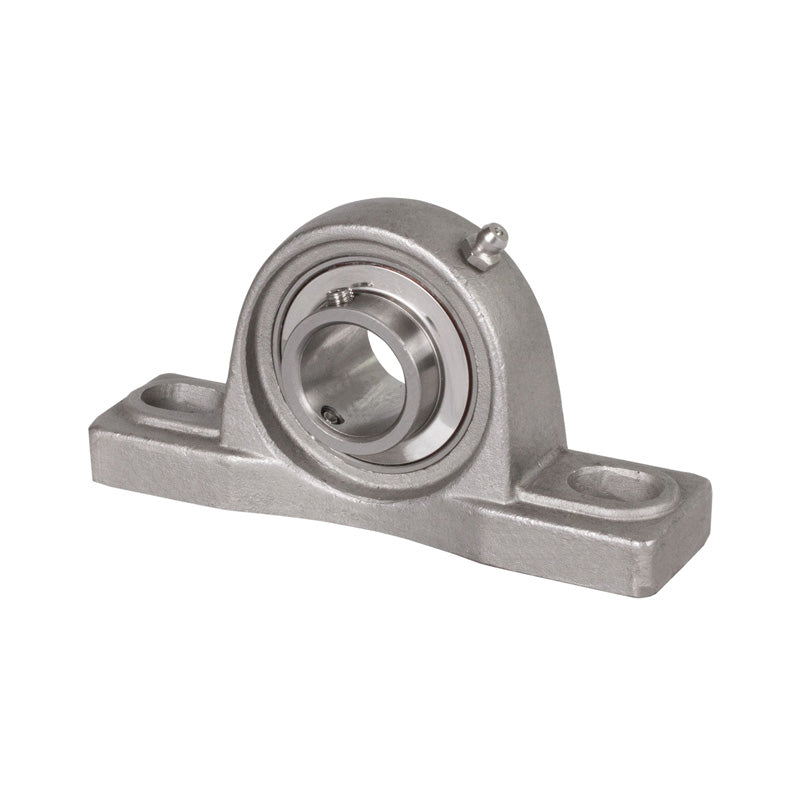

SSUCP210 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 50mm Bore Stainless Insert
SSUCP210 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 50mm Bore Stainless Insert
Regular price
CHF 109.00
ex VAT
Regular price
Sale price
CHF 109.00
ex VAT
Equivalent to: NP50
In stock
Price Break
3+
CHF 86.83
4+
CHF 81.95
9+
CHF 80.97
19+
CHF 80.00
49+
CHF 79.02
99+
CHF 78.05
499+
CHF 73.17
999+
CHF 72.19
1999+
CHF 71.22
2999+
CHF 70.24
4999+
CHF 68.29
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: NP50
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- SSUCP
- Bolt Hole Centres:
- 159mm
Technical
Technical
| d | 50mm |
|---|---|
| h | 57.2mm |
| a | 206mm |
| e | 159mm |
| b | 60mm |
| s2 | 25mm |
| s1 | 20mm |
| g | 22mm |
| w | 112mm |
| B1 | 51.6mm |
| n | 19mm |
| Bolt | 16mm |
| Weight | 2.8 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
| Rec max speed | 3400 rpm |
