SKU: SSUCP.211

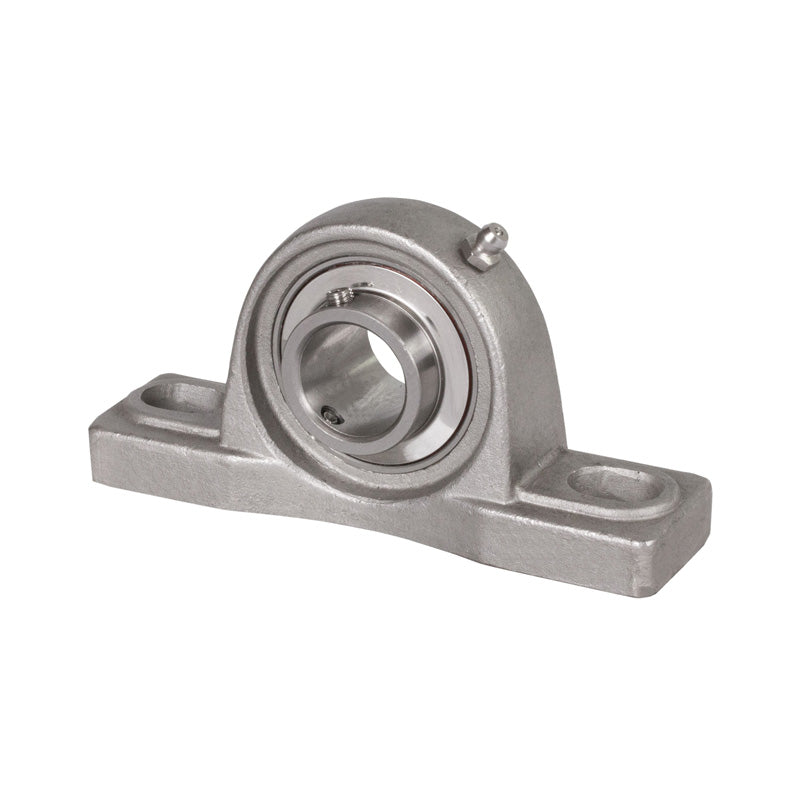

SSUCP211 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 55mm Bore Stainless Insert
SSUCP211 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 55mm Bore Stainless Insert
Regular price
CHF 133.00
ex VAT
Regular price
Sale price
CHF 133.00
ex VAT
Equivalent to: NP55
In stock
Price Break
3+
CHF 105.33
4+
CHF 99.41
9+
CHF 98.23
19+
CHF 97.05
49+
CHF 95.86
99+
CHF 94.68
499+
CHF 88.76
999+
CHF 87.58
1999+
CHF 86.40
2999+
CHF 85.21
4999+
CHF 82.85
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: NP55
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Style:
- SSUCP
- Bolt Hole Centres:
- 171mm
Technical
Technical
| d | 55mm |
|---|---|
| h | 63.5mm |
| a | 219mm |
| e | 171mm |
| b | 60mm |
| s2 | 25mm |
| s1 | 20mm |
| g | 22mm |
| w | 126mm |
| B1 | 55.6mm |
| n | 22.2mm |
| Bolt | 16mm |
| Weight | 3.4 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
| Rec max speed | 3100 rpm |
