SKU: SSUCP.215

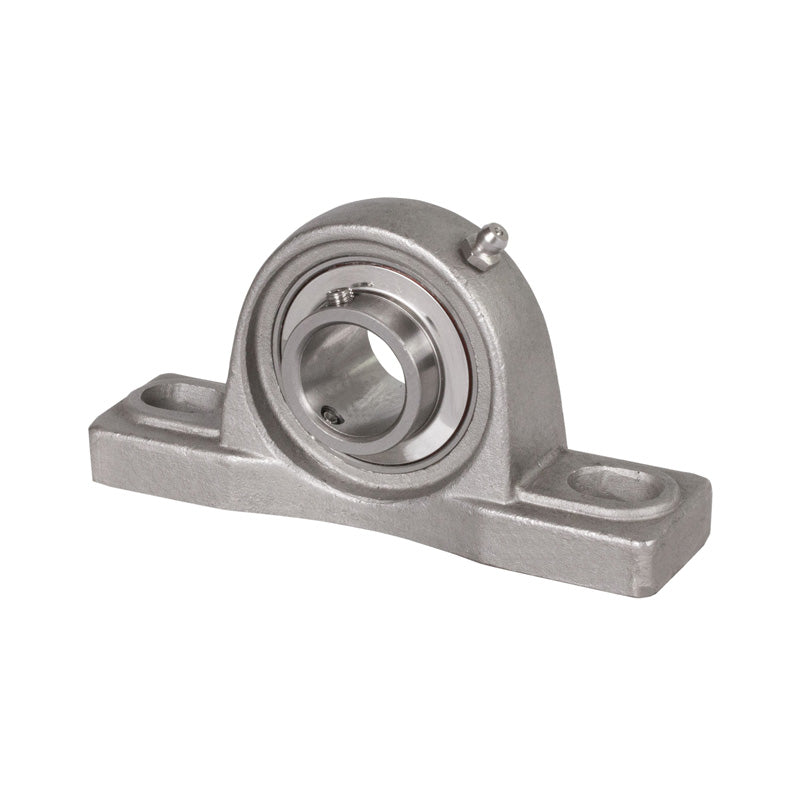

SSUCP215 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 75mm Bore Stainless Insert
SSUCP215 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 75mm Bore Stainless Insert
Regular price
CHF 344.00
ex VAT
Regular price
Sale price
CHF 344.00
ex VAT
Equivalent to: NP75
In stock
Price Break
3+
CHF 273.57
4+
CHF 258.20
9+
CHF 255.12
19+
CHF 252.05
49+
CHF 248.98
99+
CHF 245.90
499+
CHF 230.53
999+
CHF 227.46
1999+
CHF 224.39
2999+
CHF 221.31
4999+
CHF 215.16
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: NP75
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Style:
- SSUCP
- Bolt Hole Centres:
- 217mm
Technical
Technical
| d | 75mm |
|---|---|
| h | 82.6mm |
| a | 275mm |
| e | 217mm |
| b | 74mm |
| s2 | 31mm |
| s1 | 25mm |
| g | 28mm |
| w | 163mm |
| B1 | 77.8mm |
| n | 33.3mm |
| Bolt | 20mm |
| Weight | 7.6 kg |
| Dynamic load | 5190 kgf |
| Static load | 4190 kgf |
| Rec max speed | 2300 rpm |
