SKU: SSUCP.216

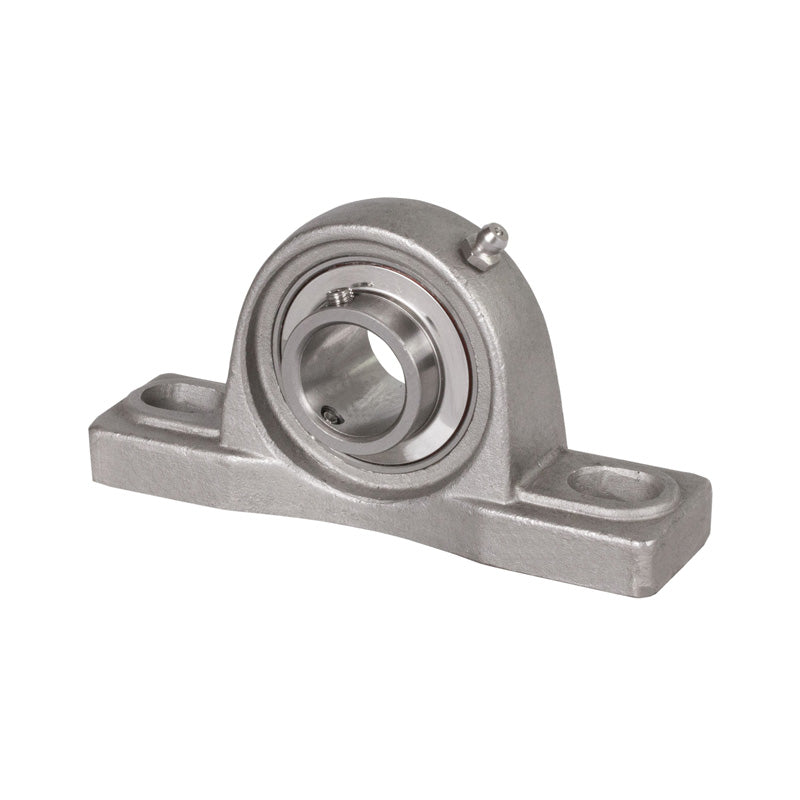

SSUCP216 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 80mm Bore Stainless Insert
SSUCP216 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 80mm Bore Stainless Insert
Regular price
CHF 410.39
ex VAT
Regular price
Sale price
CHF 410.39
ex VAT
Equivalent to: NP80
In stock
Price Break
10+
CHF 365.25
19+
CHF 344.73
29+
CHF 340.62
39+
CHF 336.52
49+
CHF 332.42
74+
CHF 328.31
99+
CHF 307.79
199+
CHF 303.69
249+
CHF 299.58
499+
CHF 295.48
999+
CHF 287.27
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: NP80
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 80mm
- Style:
- SSUCP
- Bolt Hole Centres:
- 232mm
Technical
Technical
| d | 80mm |
|---|---|
| h | 88.9mm |
| a | 292mm |
| e | 232mm |
| b | 78mm |
| s2 | 31mm |
| s1 | 25mm |
| g | 30mm |
| w | 175mm |
| B1 | 82.6mm |
| n | 33.3mm |
| Bolt | 20mm |
| Weight | 9 kg |
| Dynamic load | 5700 kgf |
| Static load | 4550 kgf |
| Rec max speed | 2150 rpm |
