SKU: SSUCT.201

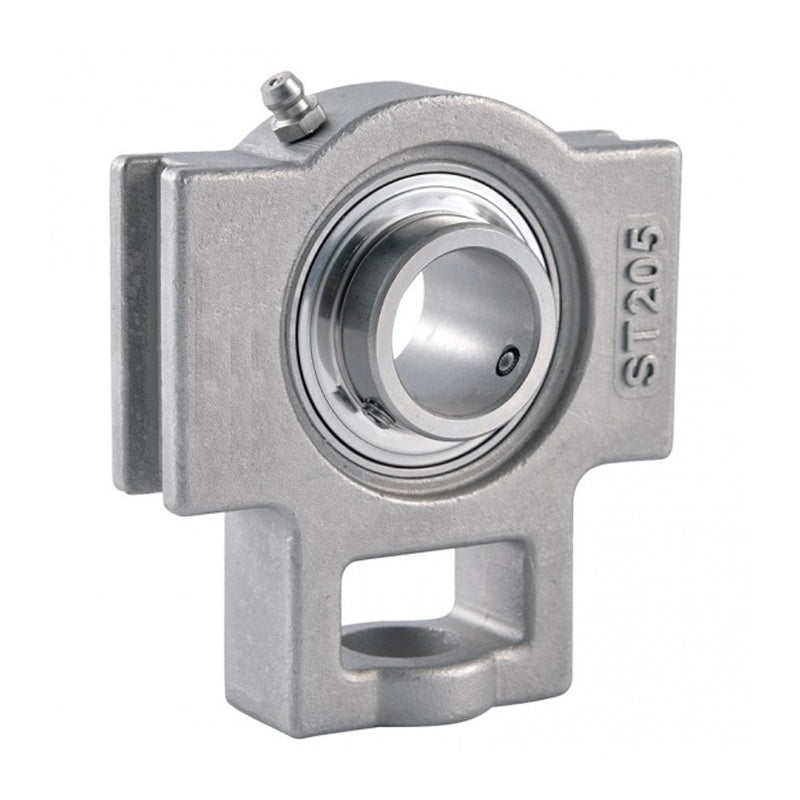

SSUCT201 Metric Stainless Steel Take Up Unit Housing with 12mm Bore Stainless Insert
SSUCT201 Metric Stainless Steel Take Up Unit Housing with 12mm Bore Stainless Insert
Regular price
CHF 26.00
ex VAT
Regular price
Sale price
CHF 26.00
ex VAT
In stock
Price Break
3+
CHF 20.26
4+
CHF 19.12
9+
CHF 18.89
19+
CHF 18.66
49+
CHF 18.44
99+
CHF 18.21
499+
CHF 17.07
999+
CHF 16.84
1999+
CHF 16.61
2999+
CHF 16.39
4999+
CHF 15.93
Description
Description
|
SSUCT or ST Series Stainless Steel Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Style:
- SSUCT
Technical
Technical
| d | 12mm |
|---|---|
| o | 16mm |
| g | 10mm |
| p | 51mm |
| q | 32mm |
| s | 19mm |
| b | 51mm |
| K | 12mm |
| e | 76mm |
| a | 89mm |
| w | 94mm |
| j | 32mm |
| l | 21mm |
| h | 61mm |
| Bi | 31mm |
| n | 12.7mm |
| Weight | 0.79 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
