SKU: SSUCT.204
SSUCT204 Metric Stainless Steel Take Up Unit Housing with 20mm Bore Stainless Insert
SSUCT204 Metric Stainless Steel Take Up Unit Housing with 20mm Bore Stainless Insert
Regular price
CHF 64.20
ex VAT
Regular price
Sale price
CHF 64.20
ex VAT
Equivalent to: ST20
In stock
Price Break
10+
CHF 57.14
19+
CHF 53.93
29+
CHF 53.29
39+
CHF 52.64
49+
CHF 52.00
74+
CHF 51.36
99+
CHF 48.15
199+
CHF 47.51
249+
CHF 46.87
499+
CHF 46.22
999+
CHF 44.94
Couldn't load pickup availability
Description
Description
|
SSUCT or ST Series Stainless Steel Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: ST20
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Style:
- SSUCT
Technical
Technical

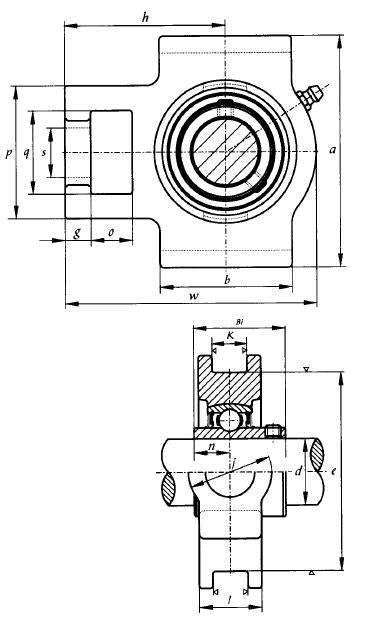

| d | 20mm |
|---|---|
| o | 16mm |
| g | 10mm |
| p | 51mm |
| q | 32mm |
| s | 19mm |
| b | 51mm |
| K | 12mm |
| e | 76mm |
| a | 89mm |
| w | 94mm |
| j | 32mm |
| l | 21mm |
| h | 61mm |
| Bi | 31mm |
| n | 12.7mm |
| Weight | 0.79 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Rec max speed | 7450 rpm |
