SKU: ST1.15/16DEC-RHP

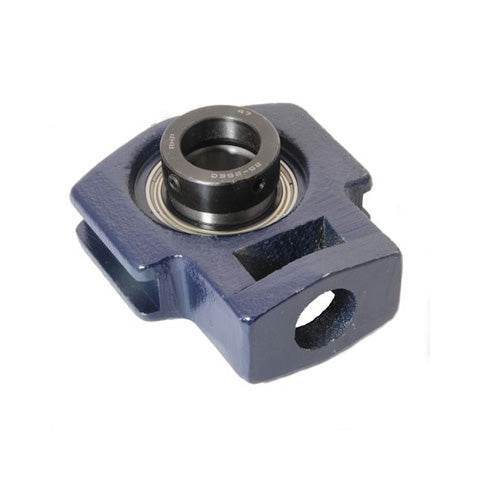

RHP ST1-15/16DEC Cast Iron Take Up Unit and 1-15/16 inch Bore Insert

RHP ST1-15/16DEC Cast Iron Take Up Unit and 1-15/16 inch Bore Insert
Regular price CHF 126.00 ex VAT
Regular price Sale price CHF 126.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 100.03
20+ CHF 94.41
30+ CHF 93.29
40+ CHF 92.16
50+ CHF 91.04
75+ CHF 89.92
100+ CHF 84.30
200+ CHF 83.17
250+ CHF 82.05
500+ CHF 80.93
1000+ CHF 78.68
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-15/16 inch
L 5.945 inch
L1 3.563 inch
L2 0.61 inch
L3 0.807 inch
L4 3.209 inch
L5 1.988 inch
H 4.646 inch
H1 3.248 inch
H2 1.949 inch
H3 3.976 inch
N 1.142 inch
A 1.949 inch
A1 1.457 inch
A2 0.689 inch
B3 2.469 inch
s2 0.97 inch
d2 2.75 inch
Dynamic load 35000 N
Static load 23200 N
Rec max speed 3400 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1050-1-15/16DECG+insonly">1050-1-15/16DECG Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
