SKU: ST1.3/8-RHP

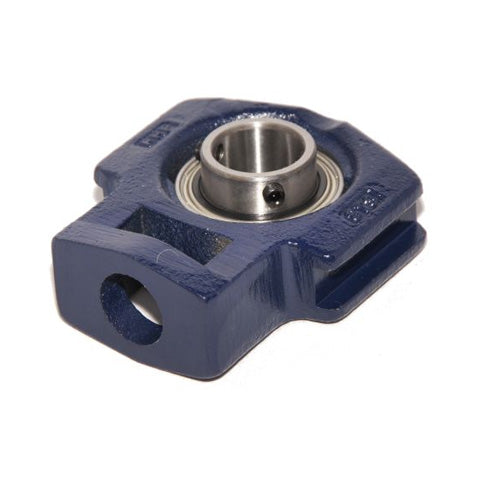

RHP ST1-3/8 Cast Iron Take Up Unit and 1-3/8 inch Bore Insert
RHP ST1-3/8 Cast Iron Take Up Unit and 1-3/8 inch Bore Insert
Regular price
CHF 73.00
ex VAT
Regular price
Sale price
CHF 73.00
ex VAT
In stock
Price Break
10+
CHF 58.05
20+
CHF 54.79
30+
CHF 54.14
40+
CHF 53.48
50+
CHF 52.83
75+
CHF 52.18
100+
CHF 48.92
200+
CHF 48.27
250+
CHF 47.61
500+
CHF 46.96
1000+
CHF 45.66
Share this product
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- ST
Technical
Technical
| Bore | 1-3/8 inch |
|---|---|
| L | 4.882 inch |
| L1 | 2.972 inch |
| L2 | 0.492 inch |
| L3 | 0.65 inch |
| L4 | 2.539 inch |
| L5 | 1.693 inch |
| H | 3.996 inch |
| H1 | 2.539 inch |
| H2 | 1.476 inch |
| H3 | 3.504 inch |
| N | 0.886 inch |
| A | 1.437 inch |
| A1 | 1.181 inch |
| A2 | 0.531 inch |
| B | 1.688 inch |
| s | 0.69 inch |
| d1 | 1.838 inch |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-3/8G+insonly">1035-1-3/8G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
